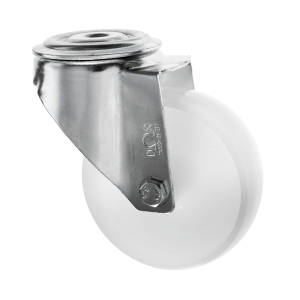

100mm Swivel Bolt Hole Castor Nylon Wheel
SKU
100-4000-NY
This 100mm swivel bolt hole castor is designed to provide smooth, controlled movement for industrial and commercial applications where durability and performance are essential. With a
In stock
£10.81
£9.01
- Price
- 1 + £10.81 £9.01
CAD Request
Frequently bought together
Alternative Products
Description
This 100mm swivel bolt hole castor is designed to provide smooth, controlled movement for industrial and commercial applications where durability and performance are essential. With a load capacity of up to 120 kg per castor, it is ideal for trolleys, carts and mobile equipment requiring reliable manoeuvrability.
Fitted with a hard-wearing nylon wheel, this castor offers excellent resistance to wear, impact and chemicals, while performing consistently across a wide temperature range from -40°C to +80°C. The swivel head allows easy directional control, and the bolt hole fixing ensures quick, secure installation.
Key Features & Specifications
General
-
Castor Type: Swivel Bolt Hole Castor
-
Bearing Type: Plain
-
Maximum Load Capacity (per castor): 120 kg
-
Maximum Load Capacity (4 castors): 360 kg
-
Colour: White
Wheel Details
-
Wheel Diameter: 100 mm
-
Tread Width: 30 mm
-
Wheel Material: Nylon
-
Tread Hardness: D75
Dimensions & Mounting
-
Total Castor Height: 128 mm
-
Swivel Radius: 80 mm
-
Bolt Hole Diameter: 12 mm
Performance
-
Temperature Range: -40°C to +80°C
-
Low rolling resistance and long service life
Typical Applications
-
Industrial and warehouse trolleys
-
Mobile workstations and carts
-
Workshop equipment
-
Commercial handling applications
Why Choose Ross Handling
Ross Handling supplies high-quality castor solutions engineered for strength, durability and consistent performance. This 100mm nylon swivel bolt hole castor offers dependable movement, excellent environmental resistance and secure fixing, making it a reliable choice for everyday industrial use.
Technical Details
 |
Bolt Hole Castors |
|---|---|
|
|
Plain |
|
|
120 |
|
|
TSZ7 NSR 100/35 F0-12 |
|
|
100-4000-NY.pdf |
|
|
30 |
|
|
-40 min to + 80 max |
|
|
12 |
|
|
D75 |
|
|
360 |
|
|
80 |
|
|
128 |
|
|
White |
|
|
100 |
|
|
Nylon |
