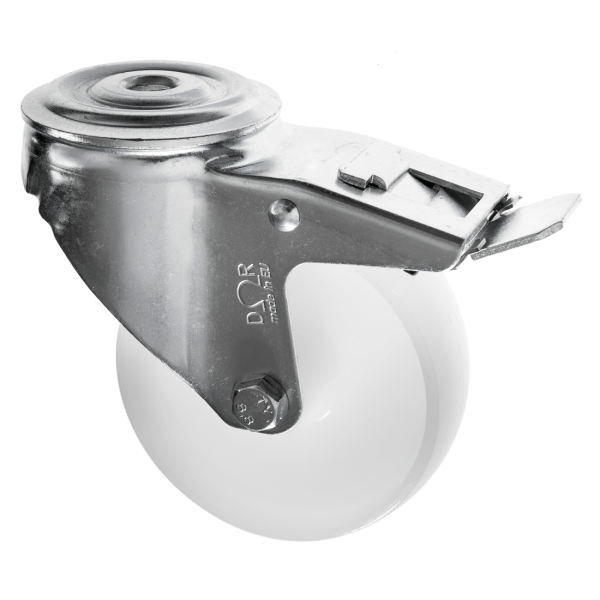

100mm Swivel Bolt Hole Braked Castor Nylon Wheel
SKU
100-4000-NY/SWB
This 100mm swivel bolt hole braked castor combines smooth mobility with secure stopping power for industrial and commercial applications. With a... Read Full Description
In stock
£14.21
£11.84
- Price
- 1 + £14.21 £11.84
CAD Request
Frequently bought together
Alternative Products
Description
This 100mm swivel bolt hole braked castor combines smooth mobility with secure stopping power for industrial and commercial applications. With a load capacity of up to 120 kg per castor, it’s ideal for trolleys, carts and mobile equipment that require dependable movement with the option to lock in place when needed.
Equipped with a hard-wearing nylon wheel, this castor offers excellent resistance to wear, impact and chemicals while performing reliably across a wide temperature range from –40 °C to +80 °C. The integrated brake mechanism holds the load securely when stationary, and the bolt hole fixing provides a quick and secure mounting solution.
Key Features & Specifications
General
-
Castor Type: Swivel Bolt Hole Castor with Brake
-
Bearing Type: Plain
-
Maximum Load Capacity (per castor): 120 kg
-
Maximum Load Capacity (4 castors): 360 kg
-
Colour: White
Wheel Details
-
Wheel Diameter: 100 mm
-
Tread Width: 30 mm
-
Wheel Material: Nylon
-
Tread Hardness: D75
Dimensions & Mounting
-
Total Castor Height: 128 mm
-
Swivel Radius: 120 mm
-
Bolt Hole Diameter: 12 mm
Performance
-
Temperature Range: –40 °C to +80 °C
-
Integrated brake for secure load positioning
Typical Applications
-
Industrial and warehouse trolleys
-
Mobile workstations and carts
-
Workshop handling equipment
-
Commercial material handling
Why Choose Ross Handling
Ross Handling supplies trusted castor solutions engineered for durability, control and safety. This 100 mm braked nylon swivel bolt hole castor offers smooth movement with reliable braking, making it a practical choice for demanding handling applications where stability and control matter.
Technical Details
 |
Bolt Hole Castors |
|---|---|
|
|
Plain |
|
|
120 |
|
|
TSZ7 NSR 100/35 F0-12 BP |
|
|
100-4000-NY-SWB.pdf |
|
|
30 |
|
|
-40 min to + 80 max |
|
|
12 |
|
|
D75 |
|
|
360 |
|
|
120 |
|
|
128 |
|
|
White |
|
|
100 |
|
|
Nylon |
