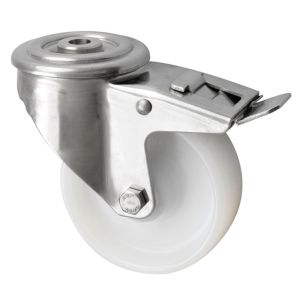

100mm Swivel Bolt Hole Stainless Steel Braked Castor Nylon Wheel
SKU
SS-100-NY/SWB/BH12
This 100 mm stainless-steel swivel braked castor is built for reliable mobility in industrial, commercial and hygiene-critical environments. The strong stainless-steel housing provides excellent... Read Full Description
In stock
£31.90
£26.58
- Price
- 1 + £31.90 £26.58
CAD Request
Frequently bought together
Description
This 100 mm stainless-steel swivel braked castor is built for reliable mobility in industrial, commercial and hygiene-critical environments. The strong stainless-steel housing provides excellent corrosion resistance, making the castor ideal for wet, wash-down or food-production settings. The durable white nylon wheel ensures smooth rolling, impact resistance and low water absorption, while maintaining excellent performance across a wide temperature range.
With a 150 kg load capacity per castor, a secure bolt-hole fixing (12 mm) and a dependable roller bearing, this castor is suited for medium-duty trolleys, frames, racks, stainless-steel workstations and mobile equipment. The integrated brake locks both the wheel and swivel fork for safe positioning and stability during use.
Key Features
-
100 mm nylon wheel – tough, smooth-running and ideal for hygiene-sensitive or wet environments
-
Stainless-steel construction – corrosion-resistant and suitable for food, medical and industrial applications
-
Roller bearing – provides efficient rolling under load
-
150 kg load capacity – reliable for medium-duty equipment and trolleys
-
Bolt-hole fixing (12 mm) – compact and secure mounting option
-
Integrated brake – locks wheel and swivel for maximum stability
-
Temperature range: –40°C to +80°C
-
Tread hardness: D75 for excellent wear resistance

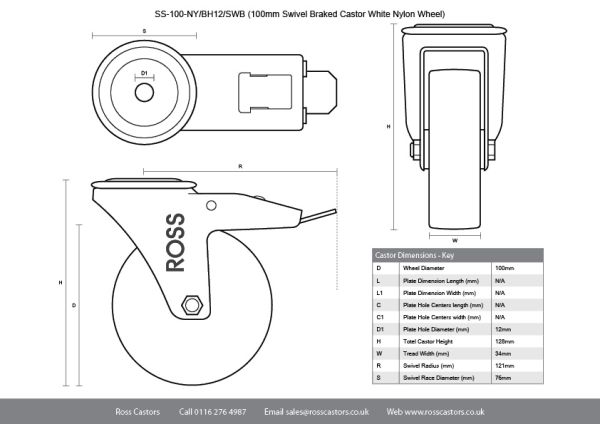

Specifications
-
Wheel Diameter: 100 mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Tread Width: 34 mm
-
Load Capacity: 150 kg per castor
-
Max Load (4 Castors): 450 kg
-
Bearing Type: Roller
-
Swivel Radius: 121 mm
-
Total Height: 128 mm
-
Bolt Hole Size: 12 mm
-
Castor Type: Bolt-hole swivel with brake
Applications
Designed for demanding and hygienic environments, including:
-
Food-processing and commercial kitchen equipment
-
Medical, pharmaceutical and laboratory trolleys
-
Stainless-steel workstations, racks and mobile platforms
-
Industrial and workshop trolleys requiring corrosion-resistant components
-
Wash-down areas and chemical-exposed environments
Why Choose Ross Handling
Ross Handling supplies high-quality stainless-steel castors engineered for reliability, hygiene and long service life. This 100 mm braked bolt-hole castor offers excellent load performance, smooth rolling and secure braking — making it a trusted choice for industrial, medical and food-grade applications.
Technical Details
 |
Bolt Hole Castors |
|---|---|
|
|
Roller |
|
|
150 |
|
|
SS-100-NY-SWB-BH12.pdf |
|
|
34 |
|
|
-40 min to + 80 max |
|
|
12 |
|
|
D75 |
|
|
450 |
|
|
121 |
|
|
128 |
|
|
White |
|
|
100 |
|
|
Nylon |
