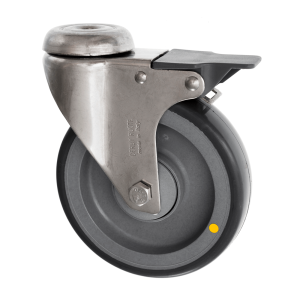

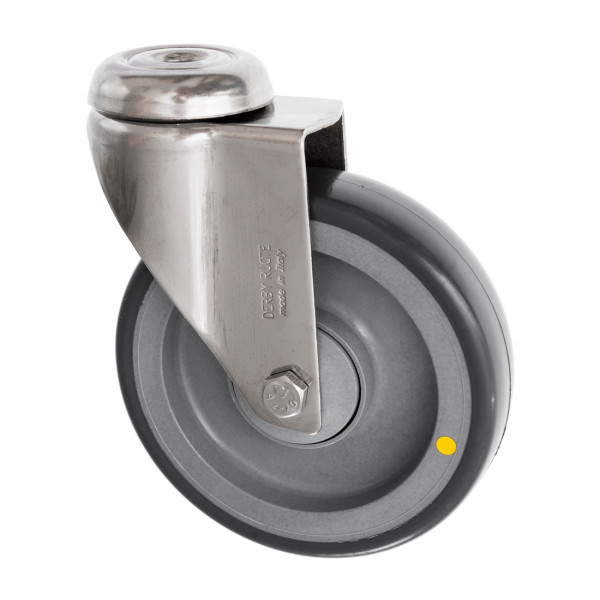

100mm Bolt Hole Stainless Steel Castor Electro Conductive Rubber Wheel
SKU
SSL-100-ASR/BH12
This 100 mm stainless steel swivel bolt hole castor is engineered for controlled movement,... Read Full Description
In stock
£28.69
£23.91
- Price
- 1 + £28.69 £23.91
CAD Request
Frequently bought together
Alternative Products
Description
This 100 mm stainless steel swivel bolt hole castor is engineered for controlled movement, compact installation, and electrostatic discharge (ESD) protection in sensitive working environments. The central bolt hole fixing allows fast, space-saving mounting, making it ideal for mobile equipment where static control is essential.
Fitted with a 100 mm grey electro-conductive rubber wheel, this castor enables safe dissipation of static electricity while delivering quiet rolling, excellent grip, and effective floor protection. The A85 hardness tread offers a durable yet cushioned rolling surface, suitable for smooth indoor floors.
With an 80 kg load capacity per castor and a ball journal bearing, this model provides smooth rolling performance, low rolling resistance, and reliable manoeuvrability. The 30 mm tread width, 134 mm total height, and 92 mm swivel radius ensure stable handling, even in tighter spaces.
Key Features
-
100 mm electro-conductive rubber wheel — ESD-safe operation with quiet rolling
-
Bolt hole mounting (12 mm) — compact, central fixing solution
-
Ball journal bearing — smooth, low-resistance movement
-
Stainless steel housing — corrosion-resistant and durable
-
80 kg load capacity per castor — ideal for light to medium-duty use
-
A85 tread hardness — balanced grip and shock absorption
-
–20 °C to +60 °C operating range — suitable for indoor environments
Specifications
-
Castor Type: Swivel, Bolt Hole
-
Bearing Type: Ball Journal
-
Load Capacity: 80 kg
-
Max Load on 4 Castors: 240 kg
-
Wheel Diameter: 100 mm
-
Tread Width: 30 mm
-
Wheel Material: Electrically Conductive Rubber
-
Wheel Colour: Grey
-
Tread Hardness: A85
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 134 mm
-
Swivel Radius: 92 mm
-
Bolt Hole Size: 12 mm
-
Manufacturer Part No.: FSX7 HPC 100/30 F0-12
Applications
Ideal for use in:
-
ESD-sensitive environments
-
Electronics assembly and testing areas
-
Medical and laboratory equipment
-
Light to medium-duty trolleys and mobile units
-
Applications requiring static dissipation and compact mounting
Why Choose Ross Handling
Ross Handling supplies high-quality stainless steel castors built for reliability, safety and smooth performance. This 100 mm electro-conductive bolt hole castor delivers effective static control, quiet operation, and easy installation, making it a dependable solution for sensitive industrial and commercial environments.
Technical Details
 |
Bolt Hole Castors |
|---|---|
|
|
Ball Journal |
|
|
80 |
|
|
FSX7 HPC 100/30 F0-12 |
|
|
SSL-100-ASR-BH12.pdf |
|
|
30 |
|
|
-20 min to + 60 max |
|
|
12 |
|
|
A85 |
|
|
240 |
|
|
92 |
|
|
134 |
|
|
Grey |
|
|
100 |
|
|
Electrically Conductive Rubber |
