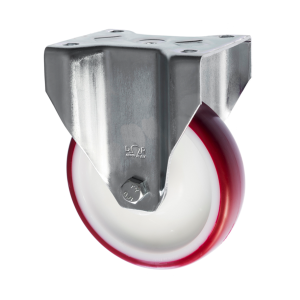

125mm Fixed Castors Polyurethane Wheel
SKU
125-3368-PNB
This 125 mm fixed castor with polyurethane wheel is designed for Read Full Description
In stock
£11.90
£9.92
- Price
- 1 + £11.90 £9.92
CAD Request
Frequently bought together
Alternative Products
Description
This 125 mm fixed castor with polyurethane wheel is designed for medium- to heavy-duty handling applications where straight-line stability, high load capacity and temperature resistance are required. The fixed housing keeps equipment tracking in a single direction, making it ideal for trolleys and frames that do not require steering.
With a load capacity of 250 kg per castor, this model is well suited to industrial trolleys, handling equipment and mobile frames. The roller bearing construction provides smooth, low-resistance rolling under load and supports reliable performance during frequent use.
The maroon polyurethane wheel features a hard-wearing tread that delivers excellent durability, strong load support and low rolling resistance. With a tread hardness of D60 and an operating temperature range of –40°C to +80°C, this castor performs reliably in environments exposed to temperature variation. The 125 mm wheel diameter improves rolling efficiency over joints and uneven floors, while the 155 mm overall height provides solid support without excessive lift. A robust top plate fixing ensures secure and straightforward installation.
Key Features
-
Fixed castor – Straight-line movement and stable tracking
-
Top plate fixing – Strong and secure mounting
-
125 mm wheel diameter – Improved rolling efficiency
-
250 kg load capacity per castor – Suitable for medium- to heavy-duty use
-
Maroon polyurethane wheel – Hard-wearing and durable
-
Polyurethane on nylon construction – High strength and low rolling resistance
-
Roller bearing – Smooth rolling under load
-
Wide temperature range: –40°C to +80°C
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 250 kg per castor
-
Max Load Capacity of 4 Castors: 750 kg
-
Wheel Diameter: 125 mm
-
Tread Width: 30 mm
-
Wheel Material: Polyurethane on Nylon
-
Wheel Colour: Maroon
-
Tread Hardness: D60
-
Temperature Range: –40°C to +80°C
-
Total Castor Height: 155 mm
-
Plate Length: 101 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 / 77 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Industrial and workshop trolleys
-
Fixed-direction handling carts
-
Mobile equipment frames
-
Commercial and industrial environments
-
Applications requiring stable straight-line movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels known for strength, durability and reliable performance. Products are chosen to meet the practical demands of commercial and industrial users.
This 125 mm fixed castor with polyurethane wheel delivers stable movement, high load capacity and excellent temperature resistance, making it a dependable choice for demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
250 |
|
|
TSZ7 NPR 125/30 P2 FA |
|
|
125-3368-PNB_1.pdf |
|
|
30 |
|
|
-40 min to +80 max |
|
|
D60 |
|
|
750 |
|
|
101 |
|
|
85 |
|
|
80/77 |
|
|
60 |
|
|
8 |
|
|
155 |
|
|
Maroon |
|
|
125 |
|
|
Polyurethane on Nylon |
