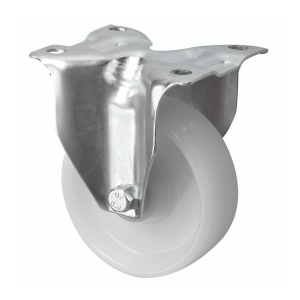

125mm Fixed Nylon Caster 300kg Load Capacity
SKU
125-3368-NYB
This 125 mm fixed heavy-duty nylon castor is designed for reliable straight-line movement of heavy loads in demanding industrial environments.... Read Full Description
In stock
£10.19
£8.49
- Price
- 1 + £10.81 £9.01
CAD Request
Frequently bought together
Alternative Products
Description
This 125 mm fixed heavy-duty nylon castor is designed for reliable straight-line movement of heavy loads in demanding industrial environments. With a load capacity of up to 300 kg per castor, it is ideal for machinery, equipment trolleys, stillages and work platforms where strength and stability are critical.
The solid nylon wheel offers excellent resistance to wear, impact and chemicals, making it well suited to harsh working conditions. Designed to operate across a wide temperature range from –40 °C to +80 °C, this castor performs reliably in cold storage, workshops and manufacturing environments. The fixed (rigid) top plate design ensures controlled tracking and directional stability when transporting heavy loads.
Key Features & Specifications
General
-
Castor Type: Fixed / Rigid Top Plate Castor
-
Bearing Type: Roller
-
Maximum Load Capacity (per castor): 300 kg
-
Maximum Load Capacity (4 castors): 900 kg
-
Colour: White
Wheel Details
-
Wheel Diameter: 125 mm
-
Tread Width: 38 mm
-
Wheel Material: Nylon
-
Tread Hardness: D75
-
Temperature Range: –40 °C to +80 °C
Mounting Details
-
Plate Length: 101 mm
-
Plate Width: 85 mm
-
Hole Centres: 80/77 mm × 60 mm
-
Plate Hole Diameter: 8 mm
Dimensions
-
Total Castor Height: 155 mm
Performance
-
High load capacity for industrial applications
-
Excellent resistance to wear, chemicals and impact
-
Fixed design for stable, straight-line movement
Typical Applications
-
Industrial trolleys and carts
-
Machinery and equipment transport
-
Warehouse and factory handling
-
Manufacturing and processing environments
Why Choose Ross Handling
Ross Handling supplies robust castor solutions engineered for strength, durability and dependable performance. This 125 mm fixed nylon castor delivers high load capacity and stable movement, making it a reliable choice for heavy-duty industrial handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
300 |
|
|
TSZ7 NSR 125/40 P2 FA |
|
|
125-3368-NYB_1.pdf |
|
|
38 |
|
|
-40 min to +80 max |
|
|
D75 |
|
|
900 |
|
|
101 |
|
|
85 |
|
|
80/77 |
|
|
60 |
|
|
8 |
|
|
155 |
|
|
White |
|
|
125 |
|
|
Nylon |
