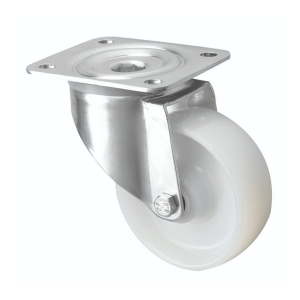

125mm Swivel Castor with Brake White Nylon Wheel
SKU
125-3360-NYB/SWB
This 125 mm swivel braked castor with white nylon wheel is designed for Read Full Description
In stock
£15.25
£12.71
- Price
- 1 + £15.25 £12.71
CAD Request
Frequently bought together
Alternative Products
Description
This 125 mm swivel braked castor with white nylon wheel is designed for medium- to heavy-duty handling applications where smooth manoeuvrability, secure braking and high load capacity are essential. The swivel action allows easy directional changes, while the integrated brake locks both the wheel and swivel head to stabilise equipment when stationary.
With a load capacity of 300 kg per castor, this model is ideal for industrial trolleys, mobile machinery and handling equipment operating in demanding environments. The roller bearing construction ensures smooth, low-resistance rolling under load and supports reliable performance during frequent use.
The white nylon wheel features a hard, wear-resistant tread that provides excellent load support and low rolling resistance on smooth surfaces. With a tread hardness of D75 and an operating temperature range of –40°C to +80°C, this castor performs reliably in environments exposed to temperature variation, moisture or regular cleaning. The 125 mm wheel diameter improves rolling efficiency over uneven floors, while the 155 mm overall height provides solid support without excessive lift. A robust top plate fixing ensures secure and straightforward installation.
Key Features
-
Swivel castor with brake – Manoeuvrability with secure locking
-
Top plate fixing – Strong and stable mounting
-
125 mm wheel diameter – Improved rolling efficiency
-
300 kg load capacity per castor – Suitable for heavy-duty use
-
White nylon wheel – Hard-wearing and high load rated
-
Roller bearing – Smooth rolling under load
-
High tread hardness (D75) – Excellent wear resistance
-
Wide temperature range: –40°C to +80°C
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 300 kg per castor
-
Max Load Capacity of 4 Castors: 900 kg
-
Wheel Diameter: 125 mm
-
Tread Width: 38 mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Tread Hardness: D75
-
Temperature Range: –40°C to +80°C
-
Total Castor Height: 155 mm
-
Swivel Radius: 123 mm
-
Plate Length: 105 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 / 77 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Mobile machinery and equipment bases
-
Manufacturing and warehouse handling units
-
Commercial and industrial environments
-
Applications requiring secure braking and high load capacity
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels known for strength, durability and reliable performance. Products are chosen to meet the practical demands of commercial and industrial users.
This 125 mm swivel braked castor with white nylon wheel delivers secure braking, high load capacity and excellent wear resistance, making it a dependable solution for demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
300 |
|
|
TSZ7 NSR 125/40 P2 BP |
|
|
125-3360-NYB-SWB_1.pdf |
|
|
38 |
|
|
-40 min to +80 max |
|
|
D75 |
|
|
900 |
|
|
105 |
|
|
85 |
|
|
80/77 |
|
|
60 |
|
|
8 |
|
|
123 |
|
|
155 |
|
|
White |
|
|
125 |
|
|
Nylon |
