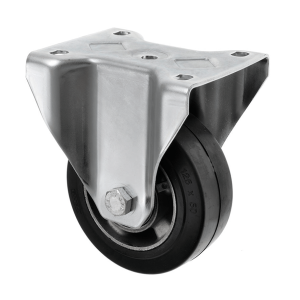

125mm Fixed Heavy Duty Castor – Rubber on Aluminium Wheel
SKU
125-5050-HRT
Fitted with a fixed orientation, this heavy duty castor is engineered for industrial use where directional stability is key. The wheel is constructed from a robust combination of rubber and aluminium, providing a balance of... Read Full Description
In stock
£35.30
£29.42
- Price
- 1 + £35.30 £29.42
CAD Request
Frequently bought together
Alternative Products
Description
Fitted with a fixed orientation, this heavy duty castor is engineered for industrial use where directional stability is key. The wheel is constructed from a robust combination of rubber and aluminium, providing a balance of grip and strength. The rubber tread has a Shore A hardness of 67, which offers a degree of flexibility and shock absorption. The castor is equipped with ball journal bearings, facilitating smooth rotation under load. Mounted via a top plate, it is designed to support a substantial weight, making it suitable for heavy-duty applications.
Key Features
- Tread Hardness: A67 – indicates flexibility and shock absorption.
- Load Capacity: 300kg
- Plate Length: 140mm – must match the mounting area.
- Plate Width: 110mm – must match the mounting area.
- Plate Hole Centres: 105mm length, 80/75mm width – must align with existing holes.
- Plate Hole Diameter: 10mm – must match the bolt size.
- Temperature Range: -20°C to +85°C
- Total Castor Height: 164mm
Applications
- Industrial trolleys: Provides stable and reliable movement for heavy loads.
- Warehouse carts: Used for transporting goods across flat surfaces.
- Machinery dollies: Supports and moves heavy equipment within industrial settings.
- Factory equipment: Facilitates movement and positioning of large machinery.
Why Choose Ross Handling
Ross Handling is a UK-based, family-run supplier of castors, wheels and handling components, established in 1977, with UK stock, fast delivery and an experienced team available to help you choose the right parts.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
5000 |
|
|
Ball Bearing |
|
|
300 |
|
|
40 |
|
|
-20 min to +85 max |
|
|
A67 |
|
|
900 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
164 |
|
|
Black |
|
|
125 |
|
|
Rubber on Aluminium |
