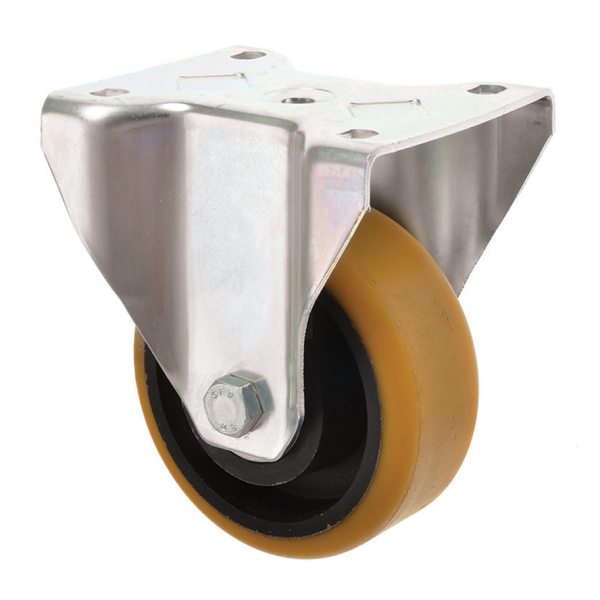

125mm Fixed Heavy Duty Castors Polyurethane Wheel 550kg
SKU
125-5050-SUB
This 125 mm heavy-duty fixed castor with a polyurethane on cast iron wheel is engineered for... Read Full Description
In stock
£54.98
£45.82
- Price
- 1 + £54.98 £45.82
CAD Request
Frequently bought together
Alternative Products
Description
This 125 mm heavy-duty fixed castor with a polyurethane on cast iron wheel is engineered for straight-line movement in very demanding industrial applications where high load support, robust wheel performance and durable construction are essential. The fixed housing ensures stable, controlled tracking — ideal for equipment that travels along a defined path or carries heavy loads without swivel requirements.
With a load capacity of 550 kg per castor, this model is well suited to industrial trolleys, heavy machinery frames, material-handling platforms and manufacturing equipment requiring consistent, load-bearing movement. The ball journal bearing provides smooth, dependable rolling performance under load, contributing to long service life in tough industrial environments.
The polyurethane on cast iron wheel combines a solid cast iron core with a high-performance polyurethane tread, delivering excellent load support, high abrasion resistance and smooth rolling characteristics. The 50 mm tread width and A92 Shore hardness create a rugged running surface that balances durability, floor protection and load distribution. Designed for use within a temperature range of –40 °C to +60 °C, this castor performs reliably across a wide range of indoor industrial settings.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres ensures secure mounting and effective load distribution for heavy-duty installations.
Key Features
-
Heavy-duty fixed castor – Stable straight-line movement
-
550 kg load capacity per castor – Exceptional industrial support
-
Polyurethane on cast iron wheel – Durable and high abrasion resistance
-
125 mm wheel diameter – Smooth rolling under load
-
50 mm tread width – Enhanced stability and floor contact
-
Ball journal bearing – Reliable rolling performance
-
Large top plate fixing – Secure mount for heavy equipment
-
Operating temperature range –40 °C to +60 °C
Specifications
-
Castor Type: Fixed, Top Plate
-
Load Capacity: 550 kg per castor
-
Max Load Capacity of 4 Castors: 1650 kg
-
Wheel Diameter: 125 mm
-
Tread Width: 50 mm
-
Wheel Material: Polyurethane on Cast Iron
-
Wheel Colour: Yellow
-
Tread Hardness: A92 Shore
-
Bearing Type: Ball Journal
-
Temperature Range: –40 °C to +60 °C
-
Total Castor Height: 164 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys and platforms
-
Machinery bases and equipment frames
-
Material handling systems and warehouse carts
-
Manufacturing and assembly equipment
-
Applications requiring high load support with stable, fixed movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of premium heavy-duty castors engineered for strength, durability and dependable performance in industrial environments. Products are chosen to meet the practical demands of commercial, manufacturing and logistics users.
This 125 mm heavy-duty fixed castor with polyurethane on cast iron wheel delivers excellent load capacity, stable movement and robust construction, making it a dependable choice for demanding material handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
550 |
|
|
125-5050-SUB_1.pdf |
|
|
50 |
|
|
-40 min to + 60 max |
|
|
A92 |
|
|
1650 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
164 |
|
|
Yellow |
|
|
125 |
|
|
Polyurethane on Cast Iron |
