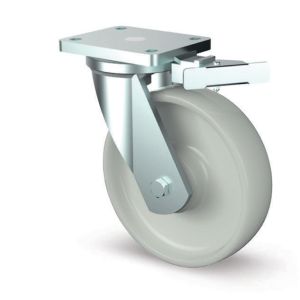

125mm Heavy Duty Castor Fabricated Nylon Wheel Directional Lock
SKU
125-6000-NYB/D
This 125mm heavy duty fabricated castor with directional lock is designed for industrial applications where both smooth swivel movement and... Read Full Description
In stock
£122.26
£101.88
- Price
- 1 + £122.26 £101.88
CAD Request
Frequently bought together
Alternative Products
Description
This 125mm heavy duty fabricated castor with directional lock is designed for industrial applications where both smooth swivel movement and controlled directional guidance are needed. Built with a top plate mounting and reliable ball journal bearing, this castor delivers dependable swivel action, while the integrated directional lock allows the wheel to be fixed in a forward-facing position for straight-line travel when required.
Fitted with a solid nylon wheel, this castor offers excellent resistance to wear, impact and a range of industrial chemicals. With a 700kg load capacity per castor and up to 2100kg maximum load across four castors, it is ideal for material handling equipment, heavy trolleys and industrial transport systems. The wheel performs reliably across a temperature range of -40°C to +80°C, suitable for both cold room and factory environments.
The A92 hardness nylon tread provides low rolling resistance on smooth surfaces while maintaining effective load stability. Its 125mm wheel diameter and 50mm tread width ensure efficient movement, and the directional lock gives added control for straight-line handling.
Key Technical Information
-
Wheel Diameter: 125mm
-
Tread Width: 50mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Bearing Type: Ball Journal
-
Load Capacity per Castor: 700kg
-
Maximum Load (4 Castors): 2100kg
-
Temperature Range: -40°C to +80°C
-
Tread Hardness: A92
-
Swivel Radius: 110mm
Top Plate Dimensions
-
Plate Length: 135mm
-
Plate Width: 110mm
-
Hole Centres Length: 105mm
-
Hole Centres Width: 80 / 75mm
-
Hole Diameter: 10mm
Manufacturer Part Number: ESZ8 NSP 125/40 P3 DD
Applications
This castor with directional lock is ideal for a variety of industrial settings, including:
-
Manufacturing and engineering facilities
-
Warehousing and logistics operations
-
Heavy-duty trolleys and carts
-
Material handling and transport systems
-
Production and assembly environments
The directional lock feature makes it especially suitable where controlled, straight-line movement is required, such as in aisle systems or guided transport paths.
Why Choose Ross Handling
Ross Handling supplies industrial-grade castors selected for strength, stability and performance. This 125mm heavy duty nylon castor with directional lock offers excellent load capacity, smooth swivel movement and enhanced directional control, making it a reliable solution for demanding industrial applications. With a focus on product quality and real-world performance, Ross Handling delivers solutions that improve safety, efficiency and equipment usability.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
700 |
|
|
ESZ8 NSP 125/40 P3 DD |
|
|
50 |
|
|
-40 min to +80 max |
|
|
A92 |
|
|
2100 |
|
|
135 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
110 |
|
|
White |
|
|
125 |
|
|
Nylon |
