150mm Bolt Hole Thermoplastic Rubber Castors with Brake
SKU
SSL-150-TPR/SWB/BH12
This 150 mm stainless steel swivel bolt hole castor with brake is engineered for smooth... Read Full Description
In Stock
£33.32
£27.77
- Price
- 1 + £33.32 £27.77
CAD Request
Frequently bought together
Alternative Products
Description

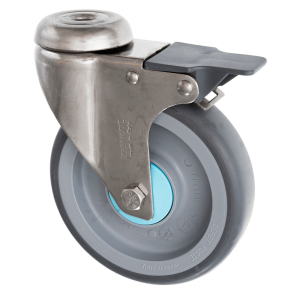

This 150 mm stainless steel swivel bolt hole castor with brake is engineered for smooth manoeuvring, quiet operation, and secure positioning in light to medium-duty applications. The central bolt hole fixing enables fast, space-efficient installation, while the integrated brake provides dependable locking when equipment needs to remain stationary.
Fitted with a 150 mm grey thermoplastic rubber wheel on a polypropylene core, this castor delivers excellent shock absorption, low rolling noise, and effective floor protection. The A85 hardness tread offers a durable yet cushioned rolling surface, making it ideal for sensitive floors and frequently moved equipment.
With a 100 kg load capacity per castor and a plain bearing design, this model provides a robust, low-maintenance solution for everyday commercial and industrial use. The 30 mm tread width, 188 mm total height, and 123 mm swivel radius ensure stable handling and controlled movement with reliable braking performance.
Key Features
-
150 mm thermoplastic rubber wheel — quiet rolling with excellent floor protection
-
Integrated brake — secure locking for safety and control
-
Bolt hole mounting (12 mm) — compact, central fixing solution
-
Stainless steel housing — corrosion-resistant and durable
-
100 kg load capacity per castor — suitable for light to medium-duty use
-
Plain bearing — simple, reliable and low maintenance
-
A85 tread hardness — effective shock absorption with long service life
-
–20 °C to +60 °C operating range — ideal for indoor environments
Specifications
-
Castor Type: Swivel Braked, Bolt Hole
-
Bearing Type: Plain
-
Load Capacity: 100 kg
-
Max Load on 4 Castors: 300 kg
-
Wheel Diameter: 150 mm
-
Tread Width: 30 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Tread Hardness: A85
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 188 mm
-
Swivel Radius: 123 mm
-
Bolt Hole Size: 12 mm
-
Manufacturer Part No.: FSX7 MGO 150/30 F0-12 BP
Applications
Ideal for use in:
-
Light to medium-duty trolleys and carts
-
Catering and service equipment
-
Medical and laboratory furniture
-
Retail displays and mobile fixtures
-
Applications requiring quiet rolling, compact mounting and secure braking
Why Choose Ross Handling
Ross Handling supplies high-quality stainless steel castors designed for smooth performance, durability and corrosion resistance. This 150 mm swivel braked bolt hole castor combines quiet operation, reliable braking, and easy installation, making it a dependable solution for everyday mobile equipment.
Technical Details
 |
Bolt Hole Castors |
|---|---|
|
|
Plain |
|
|
100 |
|
|
FSX7 MGO 150/30 F0-12 BP |
|
|
SSL-150-TPR-SWB-BH12.pdf |
|
|
30 |
|
|
-20 min to + 60 max |
|
|
12 |
|
|
A85 |
|
|
300 |
|
|
123 |
|
|
188 |
|
|
Grey |
|
|
150 |
|
|
Rubber on Polypropylene |
