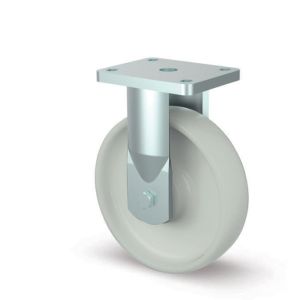

160mm Fixed Heavy Duty Fabricated Castor Nylon Wheel
SKU
160-6050-NYB
This 160mm fixed heavy duty fabricated castor is purpose-built for industrial applications requiring strong, reliable straight-line movement... Read Full Description
In stock
£62.87
£52.39
- Price
- 1 + £62.87 £52.39
CAD Request
Frequently bought together
Alternative Products
Description
This 160mm fixed heavy duty fabricated castor is purpose-built for industrial applications requiring strong, reliable straight-line movement under high loads. Featuring a sturdy top plate mounting and smooth-running ball journal bearing, this fixed castor ensures stable and efficient performance in heavy-duty environments.
Equipped with a solid nylon wheel, it provides exceptional resistance to wear, impact and many industrial chemicals. With a 900kg load capacity per castor and a maximum combined load of 2700kg across four castors, it’s ideally suited to robust trolleys, heavy equipment and material handling frameworks. The wheel is designed to perform reliably across a temperature range of -40°C to +80°C, fitting both cold-store and factory settings.
The A92 hardness nylon tread offers low rolling resistance on smooth surfaces while maintaining top-level load stability. The 160mm wheel diameter and 50mm tread width deliver a solid blend of strength and manoeuvrability for industrial use.
Key Technical Information
-
Wheel Diameter: 160mm
-
Tread Width: 50mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Bearing Type: Ball Journal
-
Load Capacity per Castor: 900kg
-
Maximum Load (4 Castors): 2700kg
-
Temperature Range: -40°C to +80°C
-
Tread Hardness: A92
-
Total Castor Height: 205mm
Top Plate Dimensions
-
Plate Length: 135mm
-
Plate Width: 110mm
-
Hole Centres Length: 105mm
-
Hole Centres Width: 80 / 75mm
-
Hole Diameter: 10mm
Applications
This fixed heavy duty nylon castor is ideal across a range of industrial settings, including:
-
Manufacturing and engineering facilities
-
Warehousing and logistics operations
-
Fixed material handling equipment
-
Industrial transport units and frames
-
Production line systems
The fixed design offers stable, straight-line tracking, especially valuable where controlled direction and minimal lateral movement are required.
Why Choose Ross Handling
Ross Handling supplies industrial-grade castors selected for durability, strength and dependable performance. This 160mm fixed heavy duty nylon castor offers excellent load performance and stable movement, giving you a reliable solution for demanding industrial applications. With a focus on choosing products that combine durability with practical performance, Ross Handling ensures solutions that enhance operational safety and efficiency.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
900 |
|
|
50 |
|
|
-40 min to +80 max |
|
|
A92 |
|
|
2700 |
|
|
135 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
205 |
|
|
White |
|
|
160 |
|
|
Nylon |
