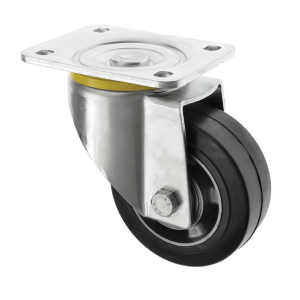

160mm Heavy Duty Directional Lock Castors - Rubber Castor Wheel
SKU
160-5000-HRT/D
This 160 mm heavy-duty swivel castor with directional lock is designed for demanding industrial... Read Full Description
In stock
£94.13
£78.44
- Price
- 1 + £94.13 £78.44
CAD Request
Frequently bought together
Alternative Products
Description
This 160 mm heavy-duty swivel castor with directional lock is designed for demanding industrial environments where high load capacity, controlled manoeuvrability and the ability to maintain straight-line travel are essential. The directional lock mechanism allows the swivel function to be locked when required, enabling equipment to track straight over longer distances or through confined spaces.
With a load capacity of 400 kg per castor, this model is ideal for heavy industrial trolleys, machinery bases, manufacturing frames and material handling systems. The ball journal swivel bearing provides smooth, controlled rotation under load, supporting reliable performance and long service life in tough working conditions.
The rubber on aluminium wheel combines a robust aluminium core with a shock-absorbing rubber tread, offering excellent load support while helping to reduce vibration and protect floor surfaces. The 40 mm tread width and 75 Shore A hardness deliver a balanced combination of grip, durability and quiet rolling. Designed for use within a temperature range of –20°C to +85°C, this castor performs reliably across a wide range of indoor industrial applications.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres ensures secure mounting and effective load distribution, making this castor suitable for heavy-duty installations where both flexibility and directional control are required.
Key Features
-
Heavy-duty swivel castor with directional lock – Switch between swivel and straight-line movement
-
400 kg load capacity per castor – Designed for demanding industrial use
-
Rubber on aluminium wheel – Strong core with shock absorption
-
160 mm wheel diameter – Smooth rolling under heavy loads
-
40 mm tread width – Improved stability and load distribution
-
Ball journal swivel bearing – Smooth, controlled rotation
-
Large top plate fixing – Secure mounting for heavy equipment
-
Operating temperature range –20°C to +85°C
Specifications
-
Castor Type: Swivel with Directional Lock, Top Plate
-
Load Capacity: 400 kg per castor
-
Max Load Capacity of 4 Castors: 1200 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 40 mm
-
Wheel Material: Rubber on Aluminium
-
Wheel Colour: Black
-
Tread Hardness: 75 Shore A
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –20°C to +85°C
-
Total Castor Height: 200 mm
-
Swivel Radius: 150 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Machinery bases and frames
-
Manufacturing and assembly equipment
-
Material handling systems
-
Applications requiring straight-line tracking with manoeuvrability
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors chosen for strength, durability and dependable performance in industrial environments. Products are sourced to meet the practical demands of manufacturing, logistics and commercial users.
This 160 mm heavy-duty swivel castor with directional lock and rubber on aluminium wheel delivers high load capacity, controlled movement and flexible handling, making it a reliable solution for demanding industrial applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
400 |
|
|
160-5000-HRT-D.pdf |
|
|
40 |
|
|
-20 min to +85 max |
|
|
75 shore A |
|
|
1200 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
150 |
|
|
200 |
|
|
Black |
|
|
160 |
|
|
Rubber on Aluminium |
