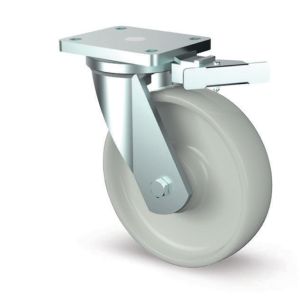

160mm Heavy Duty Castors with Directional Lock Nylon Wheel
SKU
160-6000-NYB/D
This 160mm heavy duty fabricated castor with directional lock is engineered for industrial environments where smooth swivel movement and guided... Read Full Description
In stock
£127.55
£106.29
- Price
- 1 + £127.55 £106.29
CAD Request
Frequently bought together
Alternative Products
Description
This 160mm heavy duty fabricated castor with directional lock is engineered for industrial environments where smooth swivel movement and guided straight-line control are required. Featuring a robust top plate mounting and dependable ball journal bearing, this castor delivers reliable swivel performance, while the integrated directional lock fixes the wheel in a forward position for controlled, straight-line movement when needed.
Fitted with a solid nylon wheel, this castor provides excellent resistance to wear, impact and common industrial chemicals. With a 900kg load capacity per castor and a maximum combined load of 2700kg across four castors, it is ideal for heavy-duty trolleys, material handling equipment and industrial transport systems. The wheel performs dependably across a temperature range of -40°C to +80°C, making it suitable for cold storage, factory floors and warehouse settings.
The A92 hardness nylon tread ensures low rolling resistance on smooth surfaces while maintaining high load stability. Its 160mm wheel diameter and 50mm tread width balance mobility and strength, and the directional lock provides added control for accurate handling.
Key Technical Information
-
Wheel Diameter: 160mm
-
Tread Width: 50mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Bearing Type: Ball Journal
-
Load Capacity per Castor: 900kg
-
Maximum Load (4 Castors): 2700kg
-
Temperature Range: -40°C to +80°C
-
Tread Hardness: A92
Top Plate Dimensions
-
Plate Length: 135mm
-
Plate Width: 110mm
-
Hole Centres Length: 105mm
-
Hole Centres Width: 80 / 75mm
-
Hole Diameter: 10mm
Applications
This heavy duty castor with directional lock is ideally suited for a range of industrial environments, including:
-
Manufacturing and engineering facilities
-
Warehouses and logistics operations
-
Heavy-duty trolleys and material handling systems
-
Industrial transport equipment
-
Production and assembly lines
The directional lock feature makes this castor particularly effective where consistent straight-line control is required, such as in guided paths or aisle transport.
Why Choose Ross Handling
Ross Handling supplies industrial-grade castors selected for strength, durability and real-world performance. This 160mm heavy duty nylon castor with directional lock delivers excellent load capacity, smooth swivel movement and precise directional control, making it a dependable choice for demanding industrial applications. With a focus on practical performance and equipment compatibility, Ross Handling ensures solutions that enhance operational safety and efficiency.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
900 |
|
|
50 |
|
|
-40 min to +80 max |
|
|
A92 |
|
|
2700 |
|
|
135 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
White |
|
|
160 |
|
|
Nylon |
