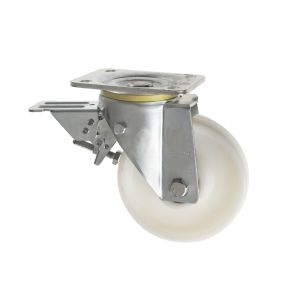

160mm Heavy Duty Castors with Leading Brake Nylon Wheel
SKU
160-5000-NYB/FR
This 160 mm heavy-duty swivel castor with leading brake and white nylon wheel is engineered for... Read Full Description
In stock
£100.14
£83.45
- Price
- 1 + £100.14 £83.45
CAD Request
Frequently bought together
Alternative Products
Description
This 160 mm heavy-duty swivel castor with leading brake and white nylon wheel is engineered for demanding industrial use where high load capacity, controlled forward braking and smooth manoeuvrability are essential. The leading brake is designed to engage as the wheel rolls forward, helping to control motion and stabilise loaded equipment without compromising swivel movement — ideal for workshop floors, ramps or material-handling pathways.
With a 700 kg load capacity per castor, this model delivers robust performance for heavy trolleys, machine bases, fabrication carts and logistics platforms. The ball journal swivel bearing ensures smooth, low-resistance rotation under load, contributing to reliable performance and a long service life even in tough industrial environments.
The white nylon wheel provides excellent wear resistance, low rolling resistance and good chemical resistance, making it ideal for hard, smooth floors in manufacturing, warehousing and assembly environments. The 50 mm tread width and D75 tread hardness deliver a stable contact surface under load, while the broad temperature range (–40 °C to +80 °C) ensures consistent performance across a wide range of indoor conditions.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres and 10 mm hole diameter ensures secure mounting and effective load distribution for heavy equipment installations requiring controlled braking and mobility.
Key Features
-
Heavy-duty swivel castor with leading brake – Controlled forward braking for stable movement
-
700 kg load capacity per castor – Robust performance in industrial applications
-
White nylon wheel – Durable, low rolling resistance and floor-friendly
-
160 mm wheel diameter – Smooth rolling under heavy loads
-
50 mm tread width – Excellent stability and contact footprint
-
Ball journal swivel bearing – Smooth, dependable rotation
-
Large top plate fixing – Secure mount for heavy equipment
-
Operating temperature range –40 °C to +80 °C
Specifications
-
Castor Type: Swivel with Leading Brake, Top Plate
-
Load Capacity: 700 kg per castor
-
Max Load Capacity of 4 Castors: 2100 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 50 mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Tread Hardness: D75 Shore
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –40 °C to +80 °C
-
Total Castor Height: 200 mm
-
Swivel Radius: 170 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy industrial trolleys and carts
-
Machine bases and assembly platforms
-
Material handling and warehouse systems
-
Workshop and production equipment
-
Applications requiring controlled forward braking with high load support
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors engineered for strength, durability and dependable performance in industrial environments. Products are chosen to meet the practical demands of commercial, manufacturing and logistics users.
This 160 mm heavy-duty swivel castor with leading brake and white nylon wheel delivers excellent load capacity, controlled manoeuvrability and enhanced braking performance, making it a dependable choice for demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
700 |
|
|
160-5000-NYB-FR.pdf |
|
|
50 |
|
|
-40 min to +80 max |
|
|
D75 |
|
|
2100 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
170 |
|
|
200 |
|
|
White |
|
|
160 |
|
|
Nylon |
