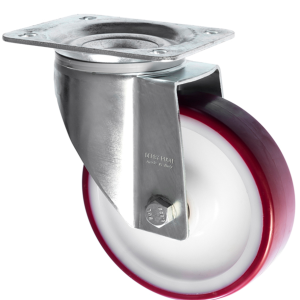

160mm Red Polyurethane Swivel Castor with Brake - 7871418
SKU
160-3360-PNB/SWB
This 160 mm swivel braked castor with polyurethane wheel is designed for
In stock
£34.27
£28.56
- Price
- 1 + £34.27 £28.56
CAD Request
Frequently bought together
Alternative Products
Description
This 160 mm swivel braked castor with polyurethane wheel is designed for heavy-duty handling applications where smooth manoeuvrability, secure braking and high load capacity are essential. The swivel action allows precise positioning, while the integrated brake locks both the wheel and swivel head to stabilise equipment when stationary.
With a load capacity of 300 kg per castor, this model is ideal for industrial trolleys, mobile machinery and heavy handling equipment. The roller bearing construction provides smooth, controlled rolling under load while helping to reduce resistance and wear during frequent operation.
The maroon polyurethane wheel features a hard-wearing tread designed for excellent durability, high load support and low rolling resistance. With a tread hardness of D60 and an operating temperature range of –40°C to +80°C, this castor performs reliably in environments subject to temperature variation. The 160 mm wheel diameter improves rolling efficiency over uneven surfaces, while the 200 mm overall height provides strong support without compromising stability. A robust top plate fixing ensures secure and dependable installation.
Key Features
-
Swivel castor with brake – Manoeuvrability with secure locking
-
Top plate fixing – Strong and stable mounting
-
160 mm wheel diameter – Improved rolling over uneven surfaces
-
300 kg load capacity per castor – Suitable for heavy-duty use
-
Maroon polyurethane wheel – Hard-wearing and durable
-
Polyurethane on nylon construction – High strength and low rolling resistance
-
Roller bearing – Smooth rolling under load
-
Wide temperature range: –40°C to +80°C
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 300 kg per castor
-
Max Load Capacity of 4 Castors: 900 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 40 mm
-
Wheel Material: Polyurethane on Nylon
-
Wheel Colour: Maroon
-
Tread Hardness: D60
-
Temperature Range: –40°C to +80°C
-
Total Castor Height: 200 mm
-
Swivel Radius: 167 mm
-
Plate Length: 137 mm
-
Plate Width: 105 mm
-
Plate Hole Centres: 105 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Mobile machinery and equipment bases
-
Manufacturing and warehouse handling units
-
Commercial and industrial environments
-
Applications requiring secure braking and high load capacity
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels known for strength, durability and consistent performance. Products are chosen to meet the practical demands of commercial and industrial users.
This 160 mm swivel braked castor with high-load polyurethane wheel delivers excellent load capacity, secure braking and reliable rolling performance, making it a dependable choice for demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
300 |
|
|
TSZ7 NPR 160/40 P3 BP |
|
|
125-3360-PNB-SWB_2.pdf |
|
|
40 |
|
|
-40 min to +80 max |
|
|
D60 |
|
|
900 |
|
|
137 |
|
|
105 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
167 |
|
|
200 |
|
|
Maroon |
|
|
160 |
|
|
Polyurethane on Nylon |
