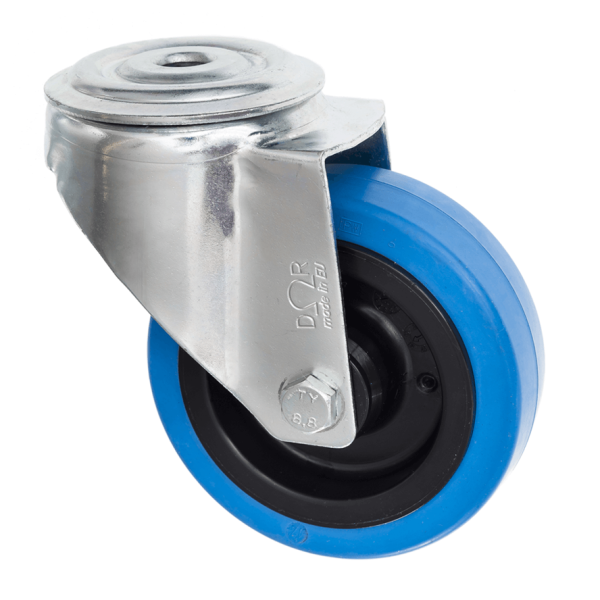

160mm Swivel Bolt Hole Castor Blue Rubber Wheel


This 160mm medium duty pressed steel bolt hole swivel castor with a 12mm bolt hole fitting and a blue non marking rubber wheel is suitable for a wide variety of applic... Read More

In Stock
£22.23 (excl. VAT) Incl. VAT: £26.68
1+ £22.23 (excl. VAT) £26.67 20 £20.88 (excl. VAT) £25.06 50 £19.51 (excl. VAT) £23.42 100 £18.02 (excl. VAT) £21.62

With this product, you earn 27 loyalty point(s). 27 points = £1.35.


This 160mm medium duty pressed steel bolt hole swivel castor with a 12mm bolt hole fitting and a blue non marking rubber wheel is suitable for a wide variety of applications such as trolleys, display racks and general purpose equipment.

Technical Details

Bearing Type Bearing Type Roller
Bolt Hole Size (mm) Bolt Hole Size (mm) 12
Colour Colour No
Hardness of Tread Hardness of Tread A64
Load Capacity (kg) Load Capacity (kg) 200
Max Load Capacity of 4 Castors Max Load Capacity of 4 Castors 600
Product Type Product Type Bolt Hole Castors
Swivel Radius Swivel Radius 135
Technical PDF Technical PDF 160-4000-RNB.pdf
Thread Material Thread Material No
Total Castor Height Total Castor Height 195
Tread Width (mm) Tread Width (mm) 40
Wheel Centre Wheel Centre Black Polypropylene
Wheel Colour Wheel Colour Blue
Wheel Diameter(mm) Wheel Diameter(mm) 160
Wheel Material Wheel Material Elasticated Rubber
