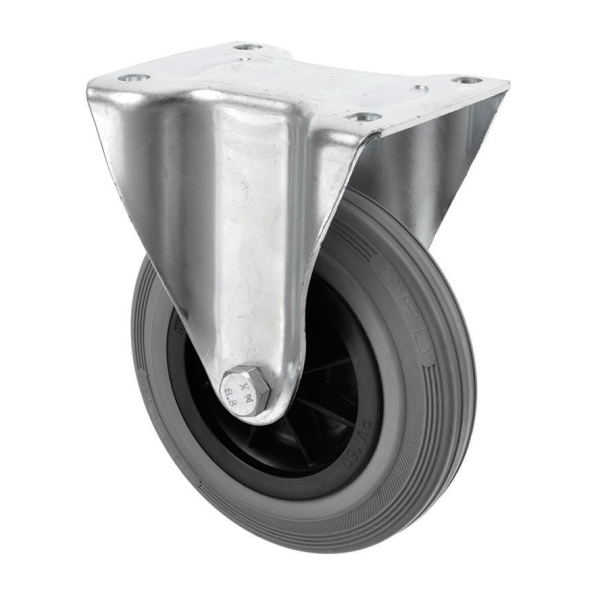

200mm Grey Rubber Wheel Fixed Castor
SKU
200-3368-GVR
This 200 mm fixed castor with grey rubber wheel is designed for stable, straight-line movement in heavy-duty applications where reliable load... Read Full Description
In stock
£25.82
£21.52
- Price
- 1 + £25.82 £21.52
CAD Request
Frequently bought together
Alternative Products
Description
This 200 mm fixed castor with grey rubber wheel is designed for stable, straight-line movement in heavy-duty applications where reliable load support and smooth rolling performance are essential. The fixed housing ensures equipment tracks in a single direction, making it suitable for large trolleys, mobile plant and material handling systems that require controlled linear movement.
With a load capacity of 200 kg per castor, this model delivers dependable performance in demanding industrial and commercial environments. The ball journal bearing construction provides robust rolling performance under load, ensuring durability and consistent movement during frequent use. With a maximum combined load capacity of 600 kg across four castors, it supports heavier platforms and equipment with confidence.
The rubber on polypropylene wheel offers excellent shock absorption, quiet operation and effective floor protection. With a tread hardness of A80 and an operating temperature range of –20°C to +80°C, this castor performs reliably across a wide range of indoor and light industrial conditions. The large 200 mm wheel diameter improves rolling efficiency and obstacle clearance, while the 240 mm total castor height provides enhanced ground clearance without compromising stability. A heavy-duty top plate fixing ensures secure and straightforward installation.
Key Features
-
Fixed castor – Stable, straight-line movement
-
Top plate fixing – Secure and robust mounting
-
200 mm wheel diameter – Excellent rolling efficiency and obstacle clearance
-
200 kg load capacity per castor – Suitable for heavy-duty use
-
Grey rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Ball journal bearing – Reliable rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Ball Journal
-
Load Capacity: 200 kg per castor
-
Max Load Capacity of 4 Castors: 600 kg
-
Wheel Diameter: 200 mm
-
Tread Width: 33 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Tread Hardness: A80
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 240 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Mobile plant and machinery
-
Large handling carts and platforms
-
Material handling equipment
-
Warehousing and production environments requiring stable linear movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial applications.
This 200 mm fixed castor with grey rubber wheel delivers robust load capacity, smooth rolling performance and durable construction, making it a practical solution for heavy-duty industrial use.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
200 |
|
|
200-3368-GVR_1.pdf |
|
|
33 |
|
|
-20 min to +80 max |
|
|
A80 |
|
|
600 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
240 |
|
|
Grey |
|
|
200 |
|
|
Rubber on Polypropylene |
