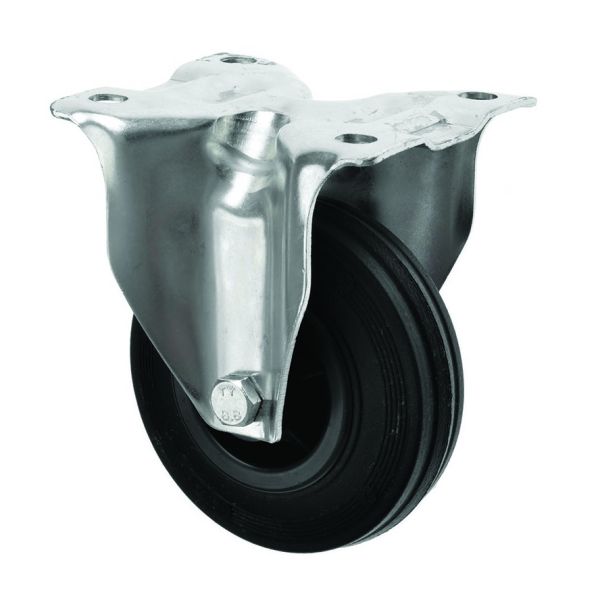

200mm Fixed Castor Black Rubber Wheel
SKU
200-3368-PVR
This 200 mm fixed castor with black rubber wheel is crafted for stable, straight-line movement and reliable load support in heavy-duty industrial... Read Full Description
In stock
£23.70
£19.75
- Price
- 1 + £23.70 £19.75
CAD Request
Frequently bought together
Alternative Products
Description
This 200 mm fixed castor with black rubber wheel is crafted for stable, straight-line movement and reliable load support in heavy-duty industrial and commercial applications. The fixed housing keeps equipment tracking in a single direction, making it ideal for large trolleys, mobile workstations and handling platforms where controlled linear movement is essential.
With a load capacity of 200 kg per castor, this model delivers consistent performance under demanding conditions. The ball journal bearing offers dependable rolling performance and long service life, even under frequent use and heavier loads. With a maximum combined load capacity of 600 kg across four castors, it supports larger equipment and platforms confidently.
The rubber on polypropylene wheel provides excellent shock absorption, quiet operation and effective floor protection. With an operating temperature range of –20°C to +80°C, this castor performs reliably across a wide range of indoor and light industrial environments. The 200 mm wheel diameter enhances rolling efficiency and obstacle clearance, while the 240 mm total castor height offers generous ground clearance without compromising stability. A robust top plate fixing ensures secure and straightforward installation.
Key Features
-
Fixed castor – Stable, straight-line movement
-
Top plate fixing – Sturdy and secure mounting
-
200 mm wheel diameter – Enhanced rolling performance and obstacle clearance
-
200 kg load capacity per castor – Suitable for heavy-duty use
-
Black rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Ball journal bearing – Reliable rolling performance
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Ball Journal
-
Load Capacity: 200 kg per castor
-
Max Load Capacity of 4 Castors: 600 kg
-
Wheel Diameter: 200 mm
-
Tread Width: 33 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Black
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 240 mm
-
Plate Length: 137 mm
-
Plate Width: 115 mm
-
Plate Hole Centres: 105 × 80 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Mobile machinery and workstations
-
Large handling carts and platforms
-
Material handling equipment
-
Warehouses and production environments requiring stable linear movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the rigorous demands of commercial and industrial use.
This 200 mm fixed castor with black rubber wheel delivers smooth rolling performance, robust load support and stable movement, making it a reliable solution for heavy-duty mobility needs.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
200 |
|
|
200-3368-PVR_1.pdf |
|
|
33 |
|
|
-20 min to +80 max |
|
|
600 |
|
|
137 |
|
|
115 |
|
|
105 |
|
|
80 |
|
|
10 |
|
|
240 |
|
|
200 |
|
|
Rubber on Polypropylene |
