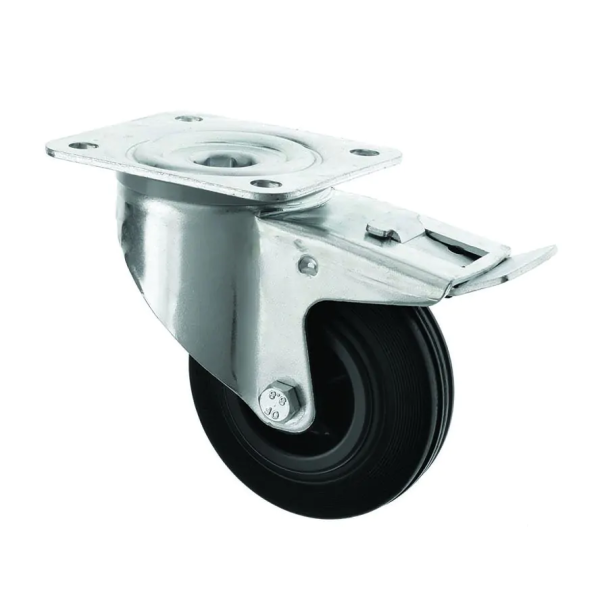

200mm Swivel Braked Castor Black Rubber Wheel
SKU
200-3360-PVR/SWB
This 200 mm swivel braked castor with black rubber wheel is designed for heavy-duty applications where smooth manoeuvrability and reliable... Read Full Description
In stock
£30.00
£25.00
- Price
- 1 + £30.00 £25.00
CAD Request
Frequently bought together
Alternative Products
Description
This 200 mm swivel braked castor with black rubber wheel is designed for heavy-duty applications where smooth manoeuvrability and reliable braking are essential. The swivel head allows easy directional changes, while the foot-operated brake locks both wheel and swivel action to keep equipment securely in place when stationary.
With a load capacity of 200 kg per castor, this model is suitable for industrial trolleys, mobile workstations and heavier handling units used in commercial and light industrial environments. The roller bearing construction ensures smooth rolling performance under load while reducing friction and wear during regular use. With a maximum combined load capacity of 600 kg across four castors, it supports larger equipment and platforms with confidence.
The rubber on polypropylene wheel provides quiet operation, effective shock absorption and good floor protection. With an operating temperature range of –20°C to +80°C, this castor performs reliably across a wide range of indoor conditions. The large 200 mm wheel diameter enhances rolling efficiency and obstacle clearance, while the 240 mm total castor height offers generous ground clearance without compromising stability. A heavy-duty top plate fixing ensures secure and straightforward installation.
Key Features
-
Swivel castor with brake – Smooth manoeuvrability with secure locking
-
Top plate fixing – Sturdy and stable mounting
-
200 mm wheel diameter – Enhanced rolling efficiency and obstacle clearance
-
200 kg load capacity per castor – Suitable for heavy-duty use
-
Black rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 200 kg per castor
-
Max Load Capacity of 4 Castors: 600 kg
-
Wheel Diameter: 200 mm
-
Tread Width: 33 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Black
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 240 mm
-
Plate Length: 137 mm
-
Plate Width: 105 mm
-
Plate Hole Centres: 105 × 80 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Mobile workstations and machinery
-
Large handling carts and platforms
-
Material handling equipment
-
Warehousing and production environments needing controlled movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial applications.
This 200 mm swivel braked castor with black rubber wheel offers smooth rolling performance, reliable braking and robust load support, making it a practical solution for heavy-duty mobility needs.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
200 |
|
|
200-3360-PVR-SWB_1.pdf |
|
|
33 |
|
|
-20 min to +80 max |
|
|
600 |
|
|
137 |
|
|
105 |
|
|
105 |
|
|
80 |
|
|
10 |
|
|
240 |
|
|
200 |
|
|
Rubber on Polypropylene |
