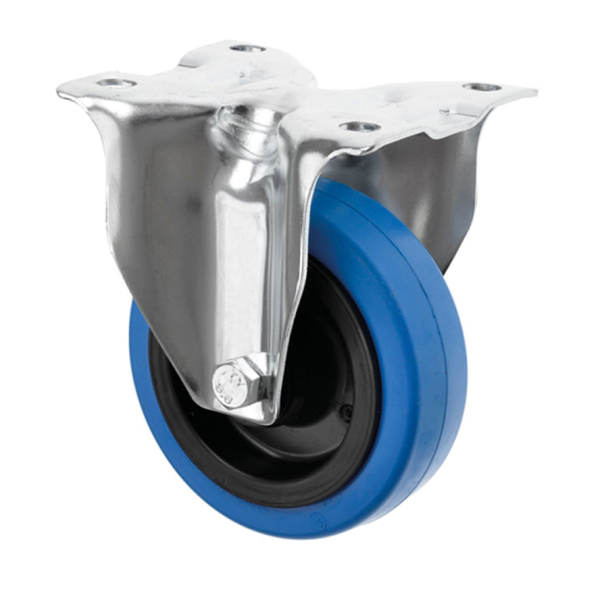

200mm Fixed Non Marking Blue Rubber Castors 400kg Capacity
SKU
200-3368-RNB
This 200 mm fixed castor with blue rubber wheel is designed for heavy-duty applications where maximum load capacity and stable, straight-line... Read Full Description
In stock
£23.87
£19.89
- Price
- 1 + £23.87 £19.89
CAD Request
Frequently bought together
Alternative Products
Description
This 200 mm fixed castor with blue rubber wheel is designed for heavy-duty applications where maximum load capacity and stable, straight-line movement are required. The fixed housing ensures equipment tracks in a single direction, making it ideal for large trolleys, mobile plant and industrial handling equipment where directional stability is critical.
With a load capacity of 400 kg per castor, this model is suited to demanding industrial and commercial environments. The ball journal bearing provides robust performance under high loads, ensuring reliable rolling and long service life during continuous operation.
The rubber on polypropylene wheel offers excellent shock absorption, reduced rolling noise and effective floor protection. With a tread hardness of A70 and an operating temperature range of –20°C to +80°C, this castor performs reliably across a wide range of indoor and light industrial conditions. The large 200 mm wheel diameter improves obstacle clearance and rolling efficiency, while the 240 mm total castor height provides increased clearance without compromising stability. A heavy-duty top plate fixing ensures secure and reliable installation.
Key Features
-
Fixed castor – Stable, straight-line movement
-
Top plate fixing – Strong and secure mounting
-
200 mm wheel diameter – Excellent rolling efficiency and obstacle clearance
-
400 kg load capacity per castor – Suitable for heavy-duty use
-
Blue rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Ball journal bearing – Reliable performance under high loads
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Ball Journal
-
Load Capacity: 400 kg per castor
-
Max Load Capacity of 4 Castors: 1200 kg
-
Wheel Diameter: 200 mm
-
Tread Width: 40 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Blue
-
Tread Hardness: A70
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 240 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Mobile plant and machinery
-
Large fabrication and assembly benches
-
Material handling equipment
-
Warehousing and production environments requiring straight-line travel
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and long-term reliability. Products are sourced from trusted manufacturers to meet the practical demands of industrial and commercial applications.
This 200 mm fixed castor with blue rubber wheel delivers exceptional load capacity, smooth rolling performance and dependable directional stability, making it a robust solution for heavy-duty linear movement.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
400 |
|
|
TSZ7 NER 200/45 P3 FA 5017 |
|
|
200-3368-RNB_1.pdf |
|
|
40 |
|
|
-20 min to +80 max |
|
|
A70 |
|
|
1200 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
240 |
|
|
Blue |
|
|
200 |
|
|
Rubber on Polypropylene |
