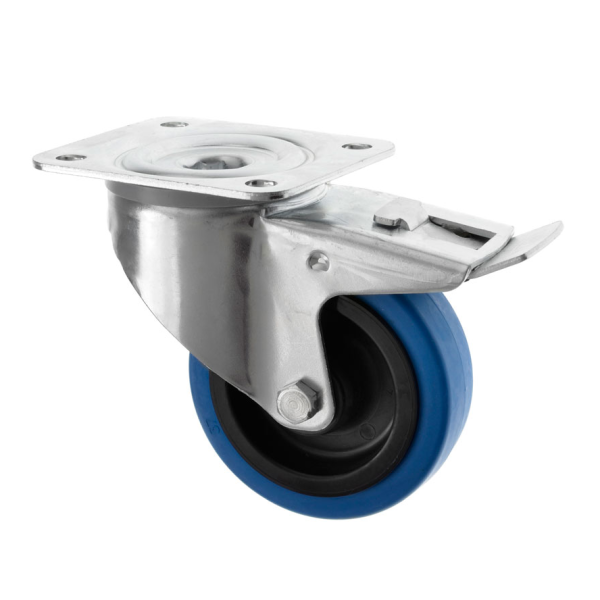

Blue Rubber Castor Non Marking with Brake 80mm
SKU
80-3360-RNB/SWB
This 80 mm swivel braked castor with blue rubber wheel is designed for medium-duty applications where smooth manoeuvrability, controlled braking... Read Full Description
In stock
£13.09
£10.91
- Price
- 1 + £13.09 £10.91
CAD Request
Frequently bought together
Alternative Products
Description
This 80 mm swivel braked castor with blue rubber wheel is designed for medium-duty applications where smooth manoeuvrability, controlled braking and dependable load performance are required. The swivel head allows easy directional changes, while the integrated brake provides positive locking to keep equipment securely in position when stationary.
With a load capacity of 150 kg per castor, this model is well suited to industrial trolleys, mobile equipment, workstations and material handling applications. The roller bearing construction supports smooth rolling under load and improved durability in more demanding environments.
The rubber on polypropylene wheel offers good floor protection, vibration reduction and quiet operation. With a tread hardness of A70 and a temperature range from –20°C to +80°C, this castor performs reliably in a wide range of indoor and light industrial conditions. The 80 mm wheel diameter provides a balance of manoeuvrability and obstacle clearance, while the 108 mm total castor height maintains stability without excessive lift. A top plate fixing ensures secure and straightforward installation.
Key Features
-
Swivel castor with brake – Smooth movement with secure locking
-
Top plate fixing – Strong, stable mounting
-
80 mm wheel diameter – Balanced manoeuvrability and clearance
-
150 kg load capacity per castor – Suitable for medium-duty use
-
Blue rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 150 kg per castor
-
Max Load Capacity of 4 Castors: 450 kg
-
Wheel Diameter: 80 mm
-
Tread Width: 36 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Blue
-
Tread Hardness: A70
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 108 mm
-
Swivel Radius: 123 mm
-
Plate Length: 105 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 / 77 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Industrial and workshop trolleys
-
Mobile equipment and machinery
-
Workstations and assembly benches
-
Material handling units
-
Indoor and light industrial environments requiring secure braking
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for durability, ease of installation and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial environments.
This 80 mm swivel braked castor with blue rubber wheel delivers smooth rolling, reliable braking and strong load performance, making it a dependable solution for medium-duty industrial applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
150 |
|
|
TSZ7 NER 80/35 P2 BP 5017 |
|
|
80-3360-RNB-SWB_1.pdf |
|
|
36 |
|
|
-20 min to +80 max |
|
|
A70 |
|
|
450 |
|
|
105 |
|
|
85 |
|
|
80/77 |
|
|
60 |
|
|
8 |
|
|
123 |
|
|
108 |
|
|
Blue |
|
|
80 |
|
|
Rubber on Polypropylene |
