Blue Rubber Castor Non Marking Elasticated 80mmBlue Rubber Castor Non Marking Elasticated 80mm
Move your mouse over image or click to enlarge
80mm Elasticated Blue Rubber Non Marking Castors 80-3360-RNB CAD Drawing
  • Image
  • 2D Technical Drawing

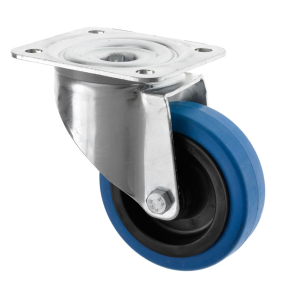

Blue Rubber Castor Non Marking Elasticated 80mm


25% price drop on these heavy duty rubber castors 80mm non marking elastic rubber wheel overall height 108mm, load rating ... Read More

In Stock
£6.50 (excl. VAT) Incl. VAT: £7.80
1+ £6.50 (excl. VAT) £7.80

With this product, you earn 8 loyalty point(s). 8 points = £0.40.


25% price drop on these heavy duty rubber castors 80mm non marking elastic rubber wheel overall height 108mm, load rating 150kgs per castor wheel, 4 x M8 Bolt Fitting Plate. These blue rubber castor frames made of a zinc plated housing which ensures the castors are robust enough and suitable for a variety of environments. The castors, with the non marking blue rubber wheel, are suitable for trolleys, equipment and general purposes. The non marking blue rubber wheel with roller bearings means the castor is easy,quiet to move, and will not mark the floor and will carry significant loads.

Technical Details

Bearing Type Bearing Type Roller
Colour Colour Blue
Hardness of Tread Hardness of Tread A70
Load Capacity (kg) Load Capacity (kg) 150
Manufacturer Part No. TSZ7 NER 80/35 P2 5017
Max Load Capacity of 4 Castors Max Load Capacity of 4 Castors 450
Plate Dimension Length (mm) Plate Dimension Length (mm) 105
Plate Dimension Width (mm) Plate Dimension Width (mm) 85
Plate Hole Centres Length (mm) Plate Hole Centres Length (mm) 80/77
Plate Hole Centres Width (mm) Plate Hole Centres Width (mm) 60
Plate Hole Diameter Plate Hole Diameter 8
Product Type Product Type Top Plate Castors
Swivel Radius Swivel Radius 84
Technical PDF Technical PDF 80-3360-RNB_1.pdf
Temperature Range Temperature Range -20 min to +80 max
Thread Material Thread Material No
Total Castor Height Total Castor Height 108
Tread Width (mm) Tread Width (mm) 36
Wheel Centre Wheel Centre Black Polypropylene
Wheel Colour Wheel Colour Blue
Wheel Diameter(mm) Wheel Diameter(mm) 80
Wheel Material Wheel Material Rubber
