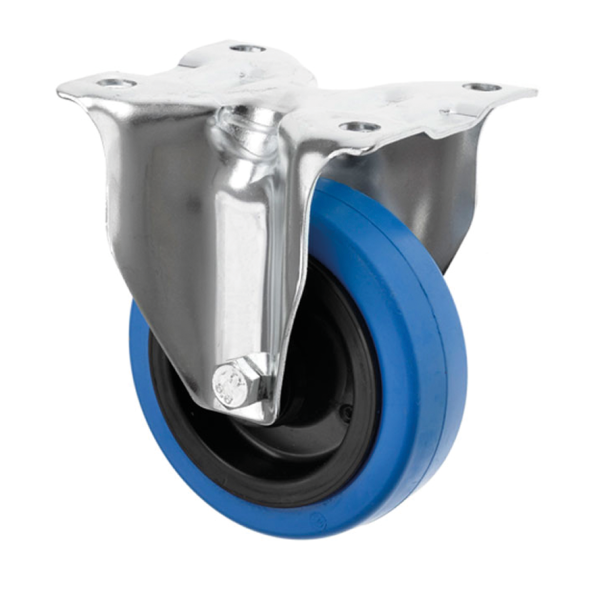

80mm Fixed Non Marking Blue Rubber Castors 150kg Capacity
SKU
80-3368-RNB
This 80 mm fixed castor with blue rubber wheel is designed for applications requiring straight-line movement with high load stability. The fixed... Read Full Description
In stock
£7.97
£6.64
- Price
- 1 + £7.97 £6.64
CAD Request
Frequently bought together
Alternative Products
Description
This 80 mm fixed castor with blue rubber wheel is designed for applications requiring straight-line movement with high load stability. The fixed housing keeps equipment tracking in a single direction, making it ideal for trolleys and mobile units where controlled, linear movement is essential.
With a load capacity of 150 kg per castor, this model is well suited to medium- and heavy-duty industrial and commercial applications. The roller bearing ensures smooth rolling under load while reducing rolling resistance and wear during regular use.
The rubber on polypropylene wheel provides excellent shock absorption, quiet operation and effective floor protection. With a tread hardness of A70 and a temperature operating range of –20°C to +80°C, this castor performs reliably in a wide range of indoor and light industrial environments. The 80 mm wheel diameter offers a balance of compact size and rolling efficiency, while the 108 mm total castor height helps maintain a low overall equipment profile. A robust top plate fixing allows secure and straightforward installation.
Key Features
-
Fixed castor – Stable, straight-line movement
-
Top plate fixing – Strong and secure mounting
-
80 mm wheel diameter – Compact design with smooth rolling
-
150 kg load capacity per castor – Suitable for medium to heavy duty use
-
Blue rubber wheel – Quiet running and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 150 kg per castor
-
Max Load Capacity of 4 Castors: 450 kg
-
Wheel Diameter: 80 mm
-
Tread Width: 36 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Blue
-
Tread Hardness: A70
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 108 mm
-
Plate Length: 99 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 / 77 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Industrial and workshop trolleys
-
Conveyor systems and guided equipment
-
Mobile workbenches
-
Material handling equipment
-
Warehousing and production environments requiring straight-line travel
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial environments.
This 80 mm fixed castor with blue rubber wheel offers stable movement, strong load capacity and smooth rolling performance, making it a reliable solution for controlled, linear motion in industrial applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
150 |
|
|
TSZ7 NER 80/35 P2 FA 5017 |
|
|
80-3368-RNB_1.pdf |
|
|
36 |
|
|
-20 min to +80 max |
|
|
A70 |
|
|
450 |
|
|
99 |
|
|
85 |
|
|
80/77 |
|
|
60 |
|
|
8 |
|
|
108 |
|
|
Blue |
|
|
80 |
|
|
Rubber on Polypropylene |
