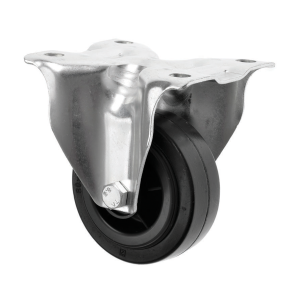

80mm Fixed Castor Black Rubber Wheel
SKU
80-3368-PVR
This 80 mm fixed castor with black rubber wheel is designed for straight-line movement and dependable load support in light-duty applications.... Read Full Description
In stock
£8.23
£6.86
- Price
- 1 + £8.23 £6.86
CAD Request
Frequently bought together
Alternative Products
Description
This 80 mm fixed castor with black rubber wheel is designed for straight-line movement and dependable load support in light-duty applications. The fixed housing ensures equipment tracks in a single direction, making it ideal for trolleys, mobile units and handling carts where controlled movement is needed without swivelling.
With a load capacity of 70 kg per castor, this model delivers reliable performance in commercial and light industrial environments. The roller bearing construction ensures smooth rolling under load while reducing friction and wear during everyday use. With a maximum combined load capacity of 210 kg across four castors, it offers dependable support for smaller platforms and equipment.
The rubber on polypropylene wheel provides quiet operation, effective vibration absorption and good floor protection. Featuring a tread hardness of A85 and an operating temperature range of –20°C to +80°C, this castor performs consistently across a wide range of indoor conditions. The 80 mm wheel diameter balances compactness with reliable rolling performance, while the 108 mm total castor height helps maintain stability without significantly raising overall equipment height. A secure top plate fixing ensures straightforward installation.
Key Features
-
Fixed castor – Stable, straight-line movement
-
Top plate fixing – Sturdy and secure mounting
-
80 mm wheel diameter – Compact and reliable rolling
-
70 kg load capacity per castor – Suitable for light-duty use
-
Black rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 70 kg per castor
-
Max Load Capacity of 4 Castors: 210 kg
-
Wheel Diameter: 80 mm
-
Tread Width: 27 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Black
-
Tread Hardness: A85
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 108 mm
-
Plate Length: 99 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 / 77 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Light-duty industrial and workshop trolleys
-
Mobile equipment and fixtures
-
Small handling carts and storage units
-
Retail displays and fixtures
-
Indoor environments requiring smooth linear movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and light industrial environments.
This 80 mm fixed castor with black rubber wheel delivers smooth rolling performance, reliable load support and quiet operation, making it a practical solution for light-duty mobility needs.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
70 |
|
|
80-3368-PVR_1.pdf |
|
|
27 |
|
|
-20 min to +80 max |
|
|
A85 |
|
|
210 |
|
|
99 |
|
|
85 |
|
|
80/77 |
|
|
60 |
|
|
8 |
|
|
108 |
|
|
Black |
|
|
80 |
|
|
Rubber on Polypropylene |
