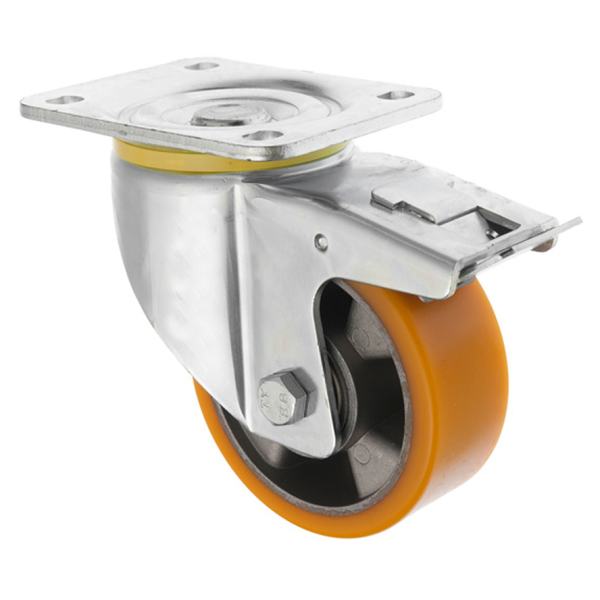

200mm Heavy Duty Castors with Brake Polyurethane Wheel
SKU
200-5000-PAL/SWB
This 200 mm heavy-duty swivel braked castor with a polyurethane on aluminium wheel is engineered... Read Full Description
In Stock
£66.26
£55.22
CAD Request
Frequently bought together
Alternative Products
Description
This 200 mm heavy-duty swivel braked castor with a polyurethane on aluminium wheel is engineered for industrial applications demanding high load capacity, smooth manoeuvrability and reliable braking control. The swivel head enables easy directional movement, while the integrated brake locks both wheel and swivel action when stationary, helping to stabilise heavy equipment during loading, unloading or positioning.
With an 800 kg load capacity per castor, this model is ideal for industrial trolleys, machinery bases, transport platforms and material-handling systems operating under significant weight. The ball journal swivel bearing delivers smooth, low-resistance rotation under load, contributing to dependable performance and extended service life in tough environments.
The polyurethane on aluminium wheel combines a lightweight aluminium core with a durable polyurethane tread, offering excellent load support, vibration reduction and floor protection. The 50 mm tread width and A92 Shore hardness provide a resilient rolling surface that balances traction, wear resistance and quiet operation. Designed for use within a temperature range of –20 °C to +60 °C, this castor performs reliably across a wide range of indoor industrial conditions.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres and 10 mm hole diameter ensures secure mounting and effective load distribution for heavy-duty applications requiring both controlled movement and braking capability.
Key Features
-
Heavy-duty swivel braked castor – Combines manoeuvrability with secure braking
-
800 kg load capacity per castor – Strong performance for rugged industrial use
-
Polyurethane on aluminium wheel – Durable tread with excellent floor protection
-
200 mm wheel diameter – Smooth rolling under heavy loads
-
50 mm tread width – Enhanced stability and surface contact
-
Ball journal swivel bearing – Smooth, reliable rotation
-
Large top plate fixing – Secure mount for heavy equipment
-
Operating temperature range –20 °C to +60 °C
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Load Capacity: 800 kg per castor
-
Max Load Capacity of 4 Castors: 2400 kg
-
Wheel Diameter: 200 mm
-
Tread Width: 50 mm
-
Wheel Material: Polyurethane on Aluminium
-
Wheel Colour: Yellow
-
Tread Hardness: A92 Shore
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 240 mm
-
Swivel Radius: 160 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys and carts
-
Machinery bases and equipment platforms
-
Material handling systems and warehouse units
-
Manufacturing and assembly equipment
-
Applications requiring controlled movement plus secure brake locking
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors engineered for strength, durability and reliable performance in industrial environments. Products are chosen to meet the practical demands of commercial, manufacturing and logistics users.
This 200 mm heavy-duty swivel braked castor with polyurethane on aluminium wheel delivers outstanding load capacity, smooth rolling performance and dependable braking, making it a dependable choice for demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
800 |
|
|
200-5000-PAL-SWB_1.pdf |
|
|
50 |
|
|
-20 min to + 60 max |
|
|
A92 |
|
|
2400 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
160 |
|
|
240 |
|
|
Yellow |
|
|
200 |
|
|
Polyurethane on Aluminium |
