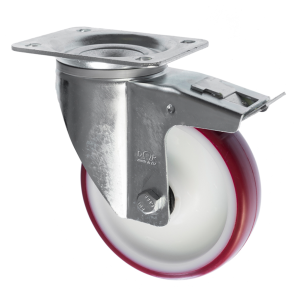

200mm Braked Castor – Red Polyurethane Wheel
SKU
200-3360-PNB/SWB
Fitted with a red polyurethane wheel, this braked castor is engineered for industrial use, providing reliable performance in demanding environments. The wheel features a Shore D60 hardness, offering a balance between firmness... Read Full Description
In stock
£46.01
£38.34
- Price
- 1 + £46.01 £38.34
CAD Request
Frequently bought together
Alternative Products
Description
Fitted with a red polyurethane wheel, this braked castor is engineered for industrial use, providing reliable performance in demanding environments. The wheel features a Shore D60 hardness, offering a balance between firmness and flexibility, which is ideal for smooth surfaces. With a load capacity of 400kg, this castor is suitable for heavy-duty applications. The roller bearing ensures smooth operation, while the top plate fitting allows for secure attachment to a variety of equipment. The braking mechanism acts on both the wheel and the swivel head, providing stability and control during use.
Key Features
- Wheel Diameter: 200mm
- Tread Hardness: D60 – indicates the firmness of the wheel tread.
- Load Capacity: 400kg
- Plate Length: 137mm – must match the mounting surface.
- Plate Width: 105mm – must match the mounting surface.
- Plate Hole Centres: 105mm length, 80/75mm width – check against existing equipment.
- Plate Hole Diameter: 10mm – ensure compatibility with mounting bolts.
- Temperature Range: -40°C to +80°C
Applications
- Industrial Trolleys: Used for transporting heavy loads in warehouses and factories.
- Material Handling Equipment: Fitted to carts and dollies for efficient movement of goods.
- Workbenches: Provides mobility and stability for adjustable workstations.
- Heavy Machinery: Supports and moves equipment in manufacturing settings.
Why Choose Ross Handling
Ross Handling is a UK-based, family-run supplier of castors, wheels and handling components, established in 1977, with UK stock, fast delivery and an experienced team available to help you choose the right parts.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
3360 |
|
|
Roller |
|
|
400 |
|
|
200-3360-PNB-SWB_1.pdf |
|
|
50 |
|
|
-40 min to +80 max |
|
|
D60 |
|
|
1200 |
|
|
137 |
|
|
105 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
167 |
|
|
240 |
|
|
Maroon |
|
|
200 |
|
|
Polyurethane on Nylon |
