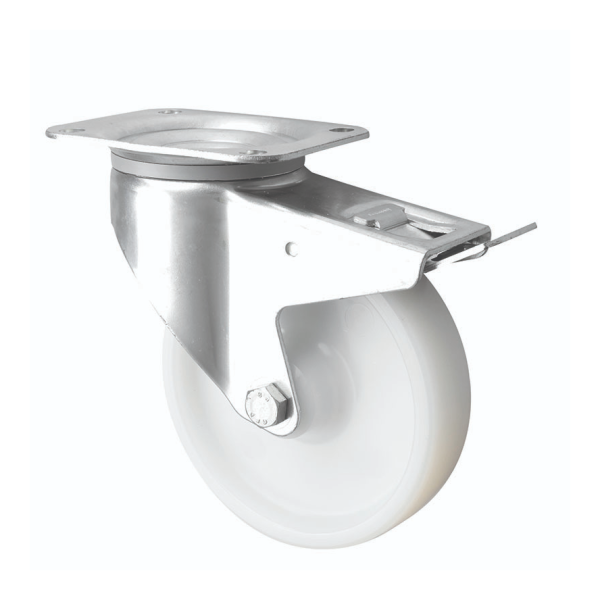

200mm Swivel Nylon Castors with Brake
SKU
200-3360-NY/SWB
This 200 mm swivel braked castor with white nylon wheel is engineered for
In stock
£29.05
£24.21
- Price
- 1 + £29.05 £24.21
CAD Request
Frequently bought together
Alternative Products
Description
This 200 mm swivel braked castor with white nylon wheel is engineered for heavy-duty handling applications where smooth manoeuvrability, secure braking and very high load capacity are essential. The swivel action allows easy directional changes, while the integrated brake locks both the wheel and swivel head to stabilise equipment when stationary.
With a load capacity of 400 kg per castor, this model is ideal for heavy industrial trolleys, mobile machinery and large handling equipment. The plain bore wheel construction offers a robust, low-maintenance solution for demanding environments where simplicity and durability are prioritised.
The white nylon wheel features a hard, wear-resistant tread that delivers exceptional load support and low rolling resistance on smooth surfaces. With a tread hardness of D75 and an operating temperature range of –40°C to +80°C, this castor performs reliably in environments exposed to temperature variation, moisture and wash-down conditions. The 200 mm wheel diameter improves rolling performance over uneven floors and thresholds, while the 240 mm overall height provides solid support without compromising stability. A heavy-duty top plate fixing ensures secure and dependable installation.
Key Features
-
Swivel castor with brake – Manoeuvrability with secure locking
-
Heavy-duty top plate fixing – Strong and stable mounting
-
200 mm wheel diameter – Excellent rolling over uneven surfaces
-
400 kg load capacity per castor – Suitable for heavy-duty use
-
White nylon wheel – Hard-wearing and high load rated
-
Plain bore bearing – Simple, robust and low maintenance
-
High tread hardness (D75) – Excellent wear resistance
-
Wide temperature range: –40°C to +80°C
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Plain
-
Load Capacity: 400 kg per castor
-
Max Load Capacity of 4 Castors: 1200 kg
-
Wheel Diameter: 200 mm
-
Tread Width: 46 mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Tread Hardness: D75
-
Temperature Range: –40°C to +80°C
-
Total Castor Height: 240 mm
-
Swivel Radius: 167 mm
-
Plate Length: 137 mm
-
Plate Width: 105 mm
-
Plate Hole Centres: 105 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Large mobile machinery and equipment bases
-
Manufacturing and warehouse handling systems
-
Wash-down and moisture-prone environments
-
Applications requiring secure braking under very high loads
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels known for strength, durability and reliable performance. Products are chosen to meet the practical demands of commercial and industrial users.
This 200 mm swivel braked castor with white nylon wheel (plain bore) delivers exceptional load capacity, secure braking and excellent wear resistance, making it a dependable solution for demanding heavy-duty handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Plain |
|
|
400 |
|
|
200-3360-NY-SWB_1.pdf |
|
|
46 |
|
|
-40 min to +80 max |
|
|
D75 |
|
|
1200 |
|
|
137 |
|
|
105 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
167 |
|
|
240 |
|
|
White |
|
|
200 |
|
|
Nylon |
