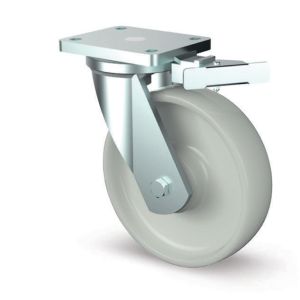

200mm Heavy Duty Fabricated Castor Nylon Wheel with Directional Lock
SKU
200-6000-NYB/D
This 200mm heavy duty fabricated castor with directional lock is built for industrial environments where smooth swivel motion and controlled... Read Full Description
In stock
£139.32
£116.10
- Price
- 1 + £139.32 £116.10
CAD Request
Frequently bought together
Alternative Products
Description
This 200mm heavy duty fabricated castor with directional lock is built for industrial environments where smooth swivel motion and controlled directional guidance are both required. Engineered with a robust top plate mounting and reliable ball journal bearing, this castor delivers dependable swivel performance, while the integrated directional lock fixes the wheel for straight-line movement when needed.
Fitted with a solid nylon wheel, this castor provides excellent resistance to wear, impact and common industrial chemicals. With a 1000kg load capacity per castor and a maximum combined load of 3000kg across four castors, it is ideal for heavy-duty trolleys, material handling equipment and industrial transport systems. The wheel operates reliably across a temperature range of -40°C to +80°C, making it suitable for cold store, factory floor and warehouse applications.
The A92 hardness nylon tread ensures low rolling resistance on smooth surfaces while maintaining high load stability. Its 200mm wheel diameter and 50mm tread width deliver a strong combination of strength and ease of movement, while the directional lock adds enhanced straight-line control.
Key Technical Information
-
Wheel Diameter: 200mm
-
Tread Width: 50mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Bearing Type: Ball Journal
-
Load Capacity per Castor: 1000kg
-
Maximum Load (4 Castors): 3000kg
-
Temperature Range: -40°C to +80°C
-
Tread Hardness: A92
Top Plate Dimensions
-
Plate Length: 135mm
-
Plate Width: 110mm
-
Hole Centres Length: 105mm
-
Hole Centres Width: 80 / 75mm
-
Hole Diameter: 10mm
Manufacturer Part Number: ESZ8 NSP 200/50 P3 DD
Applications
This heavy duty castor with directional lock is ideally suited for a variety of industrial environments, including:
-
Manufacturing and engineering facilities
-
Warehouses and logistics operations
-
Heavy-duty trolleys and carts
-
Material handling and transport systems
-
Production lines and assembly areas
The directional lock feature makes this castor particularly effective for controlled straight-line transport, such as moving loads along fixed paths or in guided systems.
Why Choose Ross Handling
Ross Handling supplies industrial-grade castors chosen for strength, durability and reliable performance. This 200mm heavy duty nylon castor with directional lock delivers excellent load capacity, smooth swivel movement and accurate directional control, making it a dependable solution for demanding material handling tasks. With a focus on product quality and real-world performance, Ross Handling ensures solutions that enhance safety, reliability and operational efficiency.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
1000 |
|
|
ESZ8 NSP 200/50 P3 DD |
|
|
50 |
|
|
-40 min to +80 max |
|
|
A92 |
|
|
3000 |
|
|
135 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
White |
|
|
200 |
|
|
Nylon |
