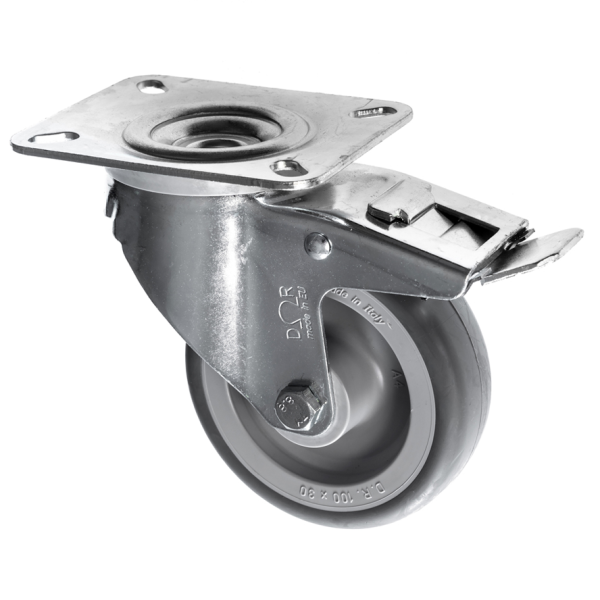

200mm Thermoplastic Rubber Castors with Brake
SKU
200-3360-MGR/SWB
This 200 mm swivel braked castor with thermoplastic rubber wheel is engineered for heavy-duty applications that demand smooth manoeuvrability... Read Full Description
In stock
£37.92
£31.60
- Price
- 1 + £37.92 £31.60
CAD Request
Frequently bought together
Alternative Products
Description
This 200 mm swivel braked castor with thermoplastic rubber wheel is engineered for heavy-duty applications that demand smooth manoeuvrability combined with secure braking. The swivel action provides easy directional changes, while the integrated brake locks both the wheel and swivel when stationary — ideal for larger trolleys, workshop equipment, mobile platforms and handling systems where both movement and stability are critical.
With a load capacity of 200 kg per castor, this robust model is suitable for industrial, commercial and workplace environments. The roller bearing construction delivers consistent, low-resistance rolling under load, helping to minimise wear and maintain long service life. With a maximum combined load capacity of 600 kg across four castors, it provides dependable support for heavier equipment and larger mobile units.
The thermoplastic rubber wheel features a non-marking, floor-friendly tread that offers excellent shock absorption, lower noise and reliable traction. With a tread hardness of 88 Shore A and an operating temperature range of –20 °C to +60 °C, this castor performs reliably in a wide range of indoor environments. The large 200 mm wheel diameter enhances rolling efficiency and obstacle clearance, while the 240 mm total castor height ensures generous ground clearance without compromising stability. A substantial top plate fixing ensures secure and straightforward installation.
Key Features
-
Swivel castor with brake – Smooth directional control with positive locking
-
Top plate fixing – Sturdy, stable mounting
-
200 mm wheel diameter – Excellent rolling performance and obstacle clearance
-
200 kg load capacity per castor – Suitable for heavy-duty applications
-
Grey thermoplastic rubber wheel – Quiet, non-marking and floor-friendly
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Operating temperature range: –20 °C to +60 °C
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 200 kg per castor
-
Max Load Capacity of 4 Castors: 600 kg
-
Wheel Diameter: 200 mm
-
Tread Width: 50 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Tread Hardness: 88 Shore A
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 240 mm
-
Swivel Radius: 155 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys and carts
-
Mobile workstations and production platforms
-
Larger material handling units
-
Workshop and factory equipment
-
Indoor settings requiring reliable braking and smooth movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the demanding needs of commercial, industrial and workplace applications.
This 200 mm swivel braked castor with thermoplastic rubber wheel delivers consistent manoeuvrability, robust braking and strong load support — making it a reliable choice for heavy-duty movement and positioning.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
200 |
|
|
TSZ7 MGR 200/50 P3 BP |
|
|
200-3360-MGR-SWB.pdf |
|
|
50 |
|
|
-20 min to +60 max |
|
|
88 shore A |
|
|
600 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
155 |
|
|
240 |
|
|
Grey |
|
|
200 |
|
|
Rubber on Polypropylene |
