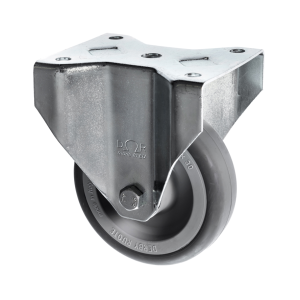

200mm Thermoplastic Rubber Wheel Fixed Castors
SKU
200-3368-MGR
This 200 mm fixed castor with thermoplastic rubber wheel is designed for
In stock
£27.52
£22.93
- Price
- 1 + £27.52 £22.93
CAD Request
Frequently bought together
Alternative Products
Description
This 200 mm fixed castor with thermoplastic rubber wheel is designed for medium-duty handling applications where straight-line stability, smooth rolling performance and floor protection are required. The fixed housing ensures consistent tracking, making it ideal for trolleys and equipment that need controlled movement in one direction.
With a load capacity of 200 kg per castor, this model is suitable for a wide range of commercial and industrial handling equipment. The roller bearing construction provides smooth, low-resistance rolling under load, helping to reduce effort during movement and wear over time.
The grey thermoplastic rubber wheel features a non-marking tread that protects floor surfaces, absorbs vibration and operates quietly. With a tread hardness of 88 Shore A and an operating temperature range of –20°C to +60°C, this castor performs reliably across varied indoor environments. The 200 mm wheel diameter improves rolling efficiency over joints and uneven floors, while the 240 mm overall height provides strong support without compromising stability. A heavy-duty top plate fixing ensures secure and reliable installation.
Key Features
-
Fixed castor – Straight-line movement and stable tracking
-
Top plate fixing – Strong and secure mounting
-
200 mm wheel diameter – Excellent rolling over uneven surfaces
-
200 kg load capacity per castor – Suitable for medium-duty use
-
Grey thermoplastic rubber wheel – Non-marking and quiet operation
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Operating temperature range: –20°C to +60°C
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 200 kg per castor
-
Max Load Capacity of 4 Castors: 600 kg
-
Wheel Diameter: 200 mm
-
Tread Width: 50 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Tread Hardness: 88 Shore A
-
Temperature Range: –20°C to +60°C
-
Total Castor Height: 240 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Industrial handling trolleys
-
Workshop carts and benches
-
Mobile frames and equipment bases
-
Commercial and industrial environments
-
Indoor applications requiring stable straight-line movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels known for strength, durability and consistent performance. Products are chosen to meet the practical demands of commercial and industrial users.
This 200 mm fixed castor with thermoplastic rubber wheel offers reliable load support, smooth rolling performance and floor protection, making it a dependable choice for medium-duty handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
200 |
|
|
TSZ7 MGR 200/50 P3 FA |
|
|
200-3368-MGR.pdf |
|
|
50 |
|
|
-20 min to +60 max |
|
|
88 shore A |
|
|
600 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
240 |
|
|
Grey |
|
|
200 |
|
|
Rubber on Polypropylene |
