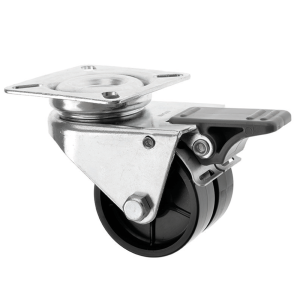

75mm Twin Wheel Black Plastic Castor with Brake
SKU
75-360-P-FP/SWB
This 75 mm braked twin wheeled top plate castor is designed to provide smooth manoeuvrability with secure stopping control for... Read Full Description
In stock
£14.96
£12.47
- Price
- 1 + £14.96 £12.47
CAD Request
Frequently bought together
Alternative Products
Description
This 75 mm braked twin wheeled top plate castor is designed to provide smooth manoeuvrability with secure stopping control for light-to-medium-duty applications. With a load capacity of up to 90 kg per castor, it is well suited to trolleys, mobile equipment and carts used in workshops, offices and commercial environments.
Equipped with black polypropylene wheels, this castor offers low rolling resistance, durability and minimal maintenance. The twin wheel configuration improves load distribution and stability, while the integrated brake allows the castor to be locked securely in position when required. The standard top plate fixing ensures straightforward and reliable installation.
Key Features & Specifications
General
-
Castor Type: Top Plate Castor with Brake
-
Bearing Type: Plain
-
Maximum Load Capacity (per castor): 90 kg
-
Maximum Load Capacity (4 castors): 270 kg
-
Colour: Black
Mounting Details
-
Plate Length: 60 mm
-
Plate Width: 60 mm
-
Hole Centres (Length): 48/37 mm
-
Hole Centres (Width): 48/37 mm
-
Plate Hole Diameter: 6 mm
Wheel Details
-
Wheel Diameter: 75 mm
-
Wheel Material: Polypropylene
-
Wheel Colour: Black
Dimensions
-
Total Castor Height: 100 mm
-
Swivel Radius: 98 mm
Performance
-
Smooth rolling with low rolling resistance
-
Integrated brake for secure load positioning
Typical Applications
-
Workshop and office trolleys
-
Mobile equipment and carts
-
Retail displays and fixtures
-
Commercial handling tasks requiring controlled stopping
Why Choose Ross Handling
Ross Handling supplies reliable castor solutions engineered for durability, control and everyday performance. This 75 mm braked twin wheel castor with polypropylene wheels offers dependable movement and secure braking, making it a practical choice for handling applications where stability and safety are essential.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Plain |
|
|
90 |
|
|
75-360-P-FP-SWB.pdf |
|
|
270 |
|
|
60 |
|
|
60 |
|
|
48/37 |
|
|
48/37 |
|
|
6 |
|
|
98 |
|
|
100 |
|
|
Black |
|
|
75 |
|
|
Polypropylene |
