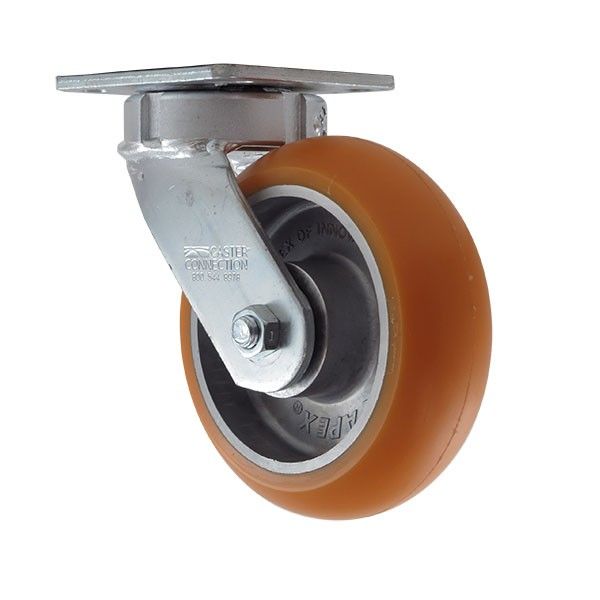

CC Apex Ergonomic Swivel Castor Kingpinless Top Plate Extended Lead
SKU
CCAPEX-5S-KP-EXT
This Apex 127 mm kingpinless swivel castor with extended lead is engineered for tow-lines, warehouse transport systems and heavy-duty industrial applications. The ergonomic polyurethane wheel... Read Full Description
In stock
£73.44
£61.20
- Price
- 1 + £73.44 £61.20
CAD Request
Frequently bought together
Description
This Apex 127 mm kingpinless swivel castor with extended lead is engineered for tow-lines, warehouse transport systems and heavy-duty industrial applications. The ergonomic polyurethane wheel provides smooth, low-effort rolling and excellent grip, while protecting internal floors and resisting wear.
The kingpinless swivel head, combined with sealed ball-journal bearings, offers long-lasting, maintenance-free performance. The extended-lead top plate improves tracking stability when towing or manoeuvring over distance, reducing flutter and enhancing control under load.
Key Features
-
127 mm ergonomic polyurethane wheel for smooth, low-resistance rolling
-
Kingpinless swivel design for maximum durability
-
Extended lead fork for improved towing stability
-
High 362 kg load capacity
-
Maintenance-free ball-journal bearings
-
Floor-friendly, non-marking polyurethane tread
Specifications
-
Castor Type: Top plate castor
-
Bearing Type: Ball journal
-
Wheel Diameter: 127 mm
-
Wheel Material: Ergonomic polyurethane
-
Wheel Colour: Orange
-
Load Capacity: 362 kg
-
Max Load Capacity (4 castors): 1086 kg
-
Tread Width: 50 mm
-
Temperature Range: –20°C to +80°C
-
Tread Hardness: 87 Shore A
-
Plate Length: 114 mm
-
Plate Width: 102 mm
-
Hole Centres (Length): 92 mm / 75 mm
-
Hole Centres (Width): 75 mm / 67 mm
-
Plate Hole Diameter: 10 mm
-
Swivel Radius: 102 mm
-
Total Castor Height: 165 mm
Applications
-
Tow-line carts and tug systems
-
Warehouse and logistics transport units
-
Industrial trolleys, platform trucks and material-handling frames
-
Mobile equipment bases and heavy-duty storage systems
-
Manufacturing, maintenance and production environments
Why Choose Ross Handling
Ross Handling supplies ergonomic Apex castors designed for demanding industrial use. This extended-lead, kingpinless swivel model provides smooth rolling, high load capacity and long service life — making it ideal for tow-line operations and heavy-duty handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
362 |
|
|
50 |
|
|
-20 min to +80 max |
|
|
87A |
|
|
1086 |
|
|
114 |
|
|
102 |
|
|
92/75 |
|
|
75/67 |
|
|
10 |
|
|
102 |
|
|
165 |
|
|
Orange |
|
|
127 |
|
|
Ergonomic Polyurethane |
