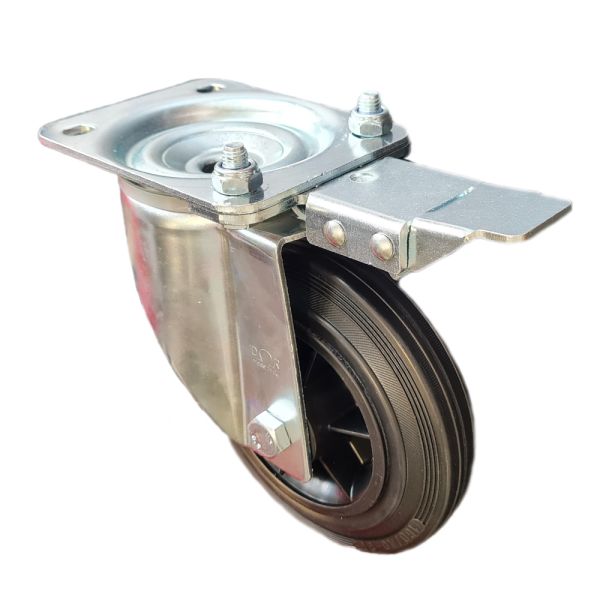

160mm Black Rubber Industrial Castors with Directional Lock
SKU
160-3360-PVR/D
This 160 mm swivel castor with black rubber wheel and directional lock is designed for medium-duty applications that require both smooth... Read Full Description
In stock
£37.13
£30.94
- Price
- 1 + £37.13 £30.94
CAD Request
Frequently bought together
Alternative Products
Description
This 160 mm swivel castor with black rubber wheel and directional lock is designed for medium-duty applications that require both smooth manoeuvrability and controlled straight-line tracking. The swivel head allows easy directional changes, while the directional lock fixes the swivel action in a straight-ahead position when needed, improving stability on runs or when guiding equipment.
With a load capacity of 150 kg per castor, this model is ideal for industrial trolleys, mobile equipment and handling platforms in commercial and light industrial environments. The roller bearing construction ensures smooth rolling under load, reducing friction and wear during regular use. With a maximum combined load capacity of 450 kg across four castors, it provides dependable support for larger platforms and heavier equipment.
The rubber on polypropylene wheel delivers quiet operation, effective shock absorption and good floor protection. Featuring a tread hardness of A85 and an operating temperature range of –20°C to +80°C, this castor performs reliably across a wide range of indoor and light industrial conditions. The 160 mm wheel diameter enhances rolling efficiency and obstacle clearance, while the 200 mm total castor height provides generous ground clearance without compromising stability. A robust top plate fixing ensures secure and straightforward installation.
Key Features
-
Swivel castor with directional lock – Manoeuvrability with straight-line control
-
Top plate fixing – Sturdy and secure mounting
-
160 mm wheel diameter – Improved rolling performance and clearance
-
150 kg load capacity per castor – Suitable for medium-duty use
-
Black rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Swivel with Directional Lock, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 150 kg per castor
-
Max Load Capacity of 4 Castors: 450 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 25 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Black
-
Tread Hardness: A85
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 200 mm
-
Swivel Radius: 135 mm
-
Plate Length: 137 mm
-
Plate Width: 105 mm
-
Plate Hole Centres: 105 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Industrial and workshop trolleys
-
Material handling units
-
Mobile workstations
-
Guided equipment runs
-
Warehousing and assembly environments requiring directional control
Why Choose Ross Handling
Ross Handling supplies a range of castors and wheels selected for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and light industrial environments.
This 160 mm swivel castor with black rubber wheel and directional lock delivers smooth rolling performance, enhanced directional control and reliable load support, making it a practical solution for guided movement in industrial applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
150 |
|
|
160-3360-PVR-D_COMPRESSED.pdf |
|
|
25 |
|
|
-20 min to +80 max |
|
|
A85 |
|
|
450 |
|
|
137 |
|
|
105 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
135 |
|
|
200 |
|
|
Black |
|
|
160 |
|
|
Rubber on Polypropylene |
