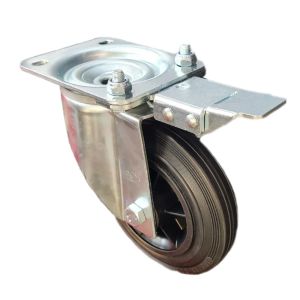

200mm Black Rubber Industrial Castors with Directional Lock
SKU
200-3360-PVR/D
This 200 mm swivel castor with black rubber wheel and directional lock is designed for heavy-duty applications where smooth manoeuvrability needs... Read Full Description
In stock
Now
£41.14
£34.28
Was
£41.26
£34.38
Was
£41.26
- Price
- 1 + £41.14 £34.28
CAD Request
Frequently bought together
Alternative Products
Description
This 200 mm swivel castor with black rubber wheel and directional lock is designed for heavy-duty applications where smooth manoeuvrability needs to be combined with controlled straight-line movement. The swivel head allows easy directional changes, while the directional lock fixes the swivel action for straight-ahead tracking, making it ideal for guided movement on larger mobile platforms.
With a load capacity of 200 kg per castor, this model provides dependable performance in industrial and commercial environments. The roller bearing construction ensures smooth rolling under load while reducing friction and wear during frequent use. With a maximum combined load capacity of 600 kg across four castors, it offers robust support for larger equipment and heavy assemblies.
The rubber on polypropylene wheel delivers quiet operation, effective shock absorption and good floor protection. Featuring a tread hardness of A85 and an operating temperature range of –20°C to +80°C, this castor performs consistently across a wide range of indoor and light industrial conditions. The 200 mm wheel diameter improves obstacle clearance and rolling efficiency, while the 240 mm total castor height gives generous ground clearance without compromising stability. A sturdy top plate fixing ensures secure and straightforward installation.
Key Features
-
Swivel castor with directional lock – Manoeuvrability with straight-line tracking
-
Top plate fixing – Robust and secure mounting
-
200 mm wheel diameter – Enhanced rolling performance and obstacle clearance
-
200 kg load capacity per castor – Suited to heavy-duty use
-
Black rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Swivel with Directional Lock, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 200 kg per castor
-
Max Load Capacity of 4 Castors: 600 kg
-
Wheel Diameter: 200 mm
-
Tread Width: 33 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Black
-
Tread Hardness: A85
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 240 mm
-
Swivel Radius: 155 mm
-
Plate Length: 137 mm
-
Plate Width: 105 mm
-
Plate Hole Centres: 137 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Industrial trolleys and large handling platforms
-
Mobile workstations and machinery
-
Material handling systems requiring guided motion
-
Warehousing, factory and production line applications
-
Heavy-duty environments where directed movement is required
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial environments.
This 200 mm swivel castor with black rubber wheel and directional lock delivers smooth rolling performance, reliable load capacity and controlled directional stability, making it a robust choice for heavy-duty guided movement.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
200 |
|
|
200-3360-PVR-D.pdf |
|
|
33 |
|
|
-20 min to +80 max |
|
|
A85 |
|
|
600 |
|
|
137 |
|
|
105 |
|
|
137 |
|
|
80/75 |
|
|
10 |
|
|
155 |
|
|
240 |
|
|
Black |
|
|
200 |
|
|
Rubber on Polypropylene |
