CC APEX Heavy Duty Ergonomic Castor Extended Swivel Maintenance-Free
SKU
CCAPEX-8S-MF-TP2-OH2-EXT
This CC Apex heavy-duty castor features a 203 mm ergonomic polyurethane wheel and an extended-swivel top plate for enhanced manoeuvrability and stability under load. Designed for demanding... Read Full Description
In Stock
£130.15
£108.46
CAD Request
Description

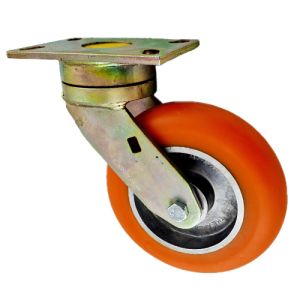

This CC Apex heavy-duty castor features a 203 mm ergonomic polyurethane wheel and an extended-swivel top plate for enhanced manoeuvrability and stability under load. Designed for demanding industrial applications, it provides smooth rolling, reduced push/pull effort and excellent floor protection.
The kingpinless swivel head with sealed 6203-RS ball bearings ensures long-lasting, maintenance-free performance — ideal for tow-line systems, heavy equipment, workshop trolleys and industrial transport units. With a strong 508 kg load capacity, this castor delivers outstanding durability for high-intensity environments.
Key Features
-
203 mm ergonomic polyurethane wheel for smooth, low-resistance rolling
-
Extended-swivel top plate improves directional stability and manoeuvrability
-
6203-RS sealed ball bearings — fully maintenance-free
-
Strong 508 kg load capacity per castor
-
Tough construction suitable for heavy industrial and workshop use
-
Floor-friendly, non-marking orange PU tread
Specifications
-
Castor Type: Top plate castor
-
Manufacturer Part No.: CCAPEX-8S-MF-TP2-OH2-EXT
-
Wheel Diameter: 203 mm
-
Wheel Material: Ergonomic polyurethane
-
Wheel Colour: Orange
-
Load Capacity (per castor): 508 kg
-
Load Capacity (4 castors): 1632 kg
-
Tread Width: 50 mm
-
Castor Width: 50 mm
-
Total Castor Height: 254 mm
-
Bearing Type: 6203-RS ball bearing
-
Temperature Range: –32°C to +82°C
-
Tread Hardness: 87 Shore A
-
Plate Length: 159 mm
-
Plate Width: 114 mm
-
Plate Hole Diameter: 12 mm
-
Swivel Radius: 190 mm
Applications
-
Heavy-duty industrial trolleys and platform trucks
-
Tow-line carts and warehouse transport systems
-
Manufacturing and production equipment
-
Industrial maintenance carts and mobile workstations
-
Machinery bases, material-handling frames and transport units
Why Choose Ross Handling
Ross Handling supplies CC Apex castors built for the toughest industrial conditions. This 203 mm extended-swivel model provides exceptional load performance, smooth movement and long-life, maintenance-free bearings — making it a dependable solution for demanding warehouse, manufacturing and commercial environments.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
6203-RS Ball Bearing |
|
|
254 |
|
|
508 |
|
|
CCAPEX-8S-MF-TP2-OH2-EXT |
|
|
50 |
|
|
-32 to 82 degrees Celsius |
|
|
50 |
|
|
87 Shore A |
|
|
508 |
|
|
508 |
|
|
1632 |
|
|
159 |
|
|
114 |
|
|
12 |
|
|
190 |
|
|
Orange |
|
|
203 |
|
|
Ergonomic Polyurethane |
