CC APEX Heavy Duty Ergonomic Castor Fixed
SKU
CCAPEX-8R-MF-TP2-OH2
This Apex heavy duty ergonomic fixed castor is engineered for robust, straight-line movement under... Read Full Description
In Stock
Now
£50.40
£42.00
Was
£73.62
£61.35
Was
£73.62
CAD Request
Alternative Products
Description

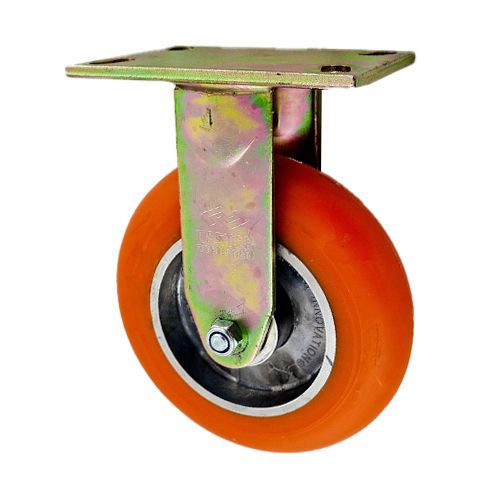

This Apex heavy duty ergonomic fixed castor is engineered for robust, straight-line movement under substantial loads in demanding industrial environments. With a load capacity of up to 508 kg per castor, it’s ideal for heavy machinery, industrial trolleys and equipment that require reliable, stable performance.
The large 203 mm ergonomic polyurethane wheel delivers excellent shock absorption, reduced rolling resistance and superior floor protection, making it suitable for use on uneven or debris-covered surfaces. Its design performs reliably across a wide temperature range from –32 °C to +82 °C, ensuring dependable operation in a variety of working conditions. Smooth rolling is provided by quality 6203-RS ball bearings, enhancing durability and ease of movement.
Key Features & Specifications
General
-
Castor Type: Fixed Top Plate Castor
-
Bearing Type: 6203-RS Ball Bearing
-
Maximum Load Capacity (per castor): 508 kg
-
Maximum Load Capacity (4 castors): 1624 kg
-
Colour: Orange
Wheel Details
-
Wheel Diameter: 203 mm
-
Tread Width: 50 mm
-
Wheel Material: Ergonomic Polyurethane
-
Tread Hardness: 87 Shore A
-
Temperature Range: –32 °C to +82 °C
Mounting & Dimensions
-
Plate Length: 159 mm
-
Plate Width: 114 mm
-
Plate Hole Diameter: 12 mm
-
Swivel Radius: 190 mm
-
Overall Height: 256 mm
Performance
-
Heavy duty load support for industrial use
-
Polyurethane wheel for floor protection and shock absorption
-
Ball bearing for smoother rolling under load
Typical Applications
-
Heavy industrial trolleys and carts
-
Machinery and equipment transport
-
Warehouse and factory handling
-
Manufacturing and logistics environments
Why Choose Ross Handling
Ross Handling supplies engineered castor solutions designed for strength, performance and longevity. This 203 mm Apex heavy duty ergonomic fixed castor delivers high load capacity with smooth, stable movement — making it a dependable choice for demanding industrial material handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
6203-RS Ball Bearing |
|
|
256 |
|
|
508 |
|
|
CCAPEX-8R-MF-TP2-OH2 |
|
|
50 |
|
|
-32 to 82 degrees Celsius |
|
|
50 |
|
|
87 Shore A |
|
|
508 |
|
|
508 |
|
|
1624 |
|
|
159 |
|
|
114 |
|
|
12 |
|
|
190 |
|
|
Orange |
|
|
203 |
|
|
Ergonomic Polyurethane |
