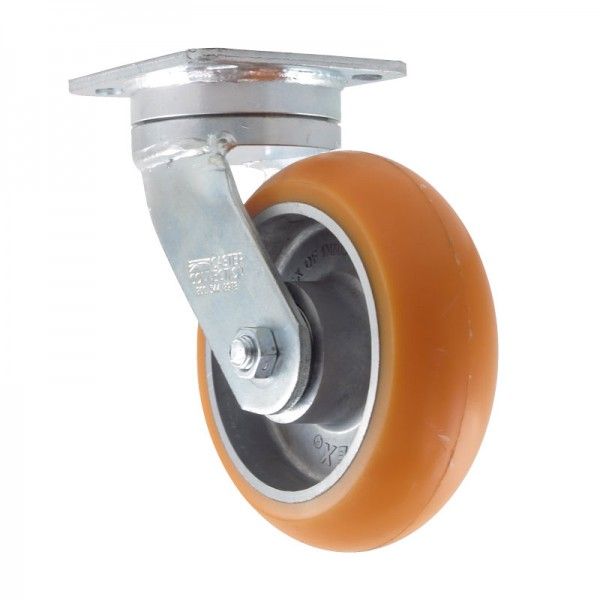

152mm Extended Lead Kingpinless Top Plate Castor Ergonomic Wheel
SKU
CCAPEX-6S-EMF-EXT
This 6″ (152 mm) Apex extended kingpinless castor is engineered for smooth, stable, heavy-duty... Read Full Description
In stock
£103.33
£86.11
- Price
- 1 + £103.33 £86.11
CAD Request
Frequently bought together
Alternative Products
Description
This 6″ (152 mm) Apex extended kingpinless castor is engineered for smooth, stable, heavy-duty movement in demanding industrial and commercial applications. With a load capacity of up to 454 kg per castor, it’s ideal for heavy trolleys, equipment platforms and mobile systems that need reliable manoeuvrability and long-lasting performance.
The ergonomic polyurethane wheel delivers excellent shock absorption, low rolling resistance and strong floor surface protection — making it suitable for use on rough, debris-covered or sensitive floors. Its performance remains dependable across a wide temperature range from −20 °C to +80 °C. The kingpinless construction enhances strength and service life by eliminating a common pivot wear point, while the precision ball journal bearing ensures smooth rotation and easy steering.
This extended variant improves directional stability when pushing or towing, reducing wobble and improving tracking over extended distances or uneven surfaces. The robust top plate fitting provides a secure and straightforward installation to compatible equipment and frames.
Key Features & Specifications
General
-
Castor Type: Extended Kingpinless Top Plate Castor
-
Bearing Type: Ball Journal
-
Maximum Load Capacity (per castor): 454 kg
-
Maximum Load Capacity (4 castors): 1362 kg
-
Colour: Orange
Wheel Details
-
Wheel Diameter: 152 mm
-
Tread Width: 50 mm
-
Wheel Material: Ergonomic Polyurethane
-
Tread Hardness: 87 Shore A
-
Temperature Range: −20 °C to +80 °C
Mounting Details
-
Plate Length: 114 mm
-
Plate Width: 102 mm
-
Hole Centres: 92/75 mm × 75/67 mm
-
Plate Hole Diameter: 10 mm
Dimensions & Movement
-
Total Castor Height: 191 mm
-
Swivel Radius: 146 mm
-
Extended Design: Improved stability for push/tow
Performance
-
Smooth, low-effort rolling with excellent shock absorption
-
Kingpinless design for enhanced durability and service life
-
Extended lead for better directional control
-
Ergonomic wheel for continuous heavy use
Typical Applications
-
Heavy-duty industrial trolleys
-
Plant and equipment mobility
-
Warehouse and factory handling systems
-
Logistics and production environments requiring stable tracking
Why Choose Ross Handling
Ross Handling supplies engineered castor solutions built for durability, strength and smooth performance. This 152 mm Apex extended kingpinless castor with ergonomic polyurethane wheel delivers high load capacity with stable movement and enhanced control — making it a dependable choice for demanding industrial handling tasks.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
454 |
|
|
50 |
|
|
-20 min to +80 max |
|
|
87A |
|
|
1362 |
|
|
114 |
|
|
102 |
|
|
92/75 |
|
|
75/67 |
|
|
10 |
|
|
146 |
|
|
191 |
|
|
Orange |
|
|
152 |
|
|
Ergonomic Polyurethane |
