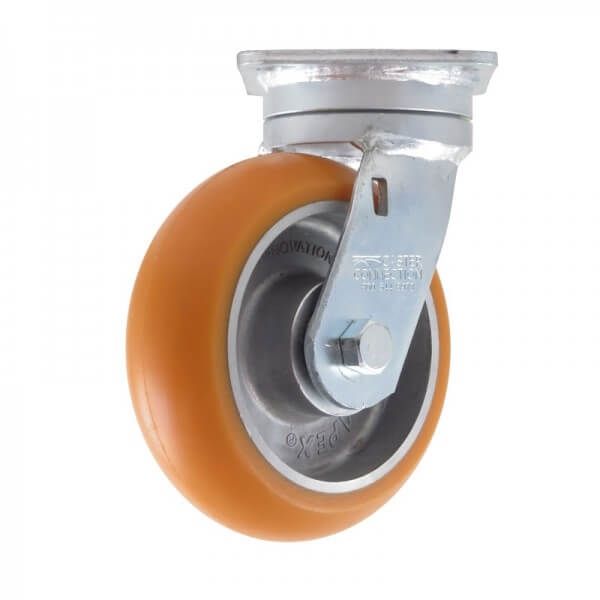

Maintenance Free Heavy Duty Castor with 6" Donut Wheel
SKU
CCAPEX-6S-EMF
This maintenance-free heavy duty castor with a 6″ ergonomic polyurethane donut wheel is... Read Full Description
In stock
£103.33
£86.11
- Price
- 1 + £103.33 £86.11
CAD Request
Frequently bought together
Alternative Products
Description
This maintenance-free heavy duty castor with a 6″ ergonomic polyurethane donut wheel is engineered for smooth, robust movement under heavy loads in demanding industrial settings. With a load capacity of up to 454 kg per castor, it’s perfect for heavy-duty trolleys, equipment carts and mobile systems that require reliable performance and low maintenance.
The 152 mm ergonomic polyurethane donut wheel offers excellent shock absorption, low rolling resistance and superior protection for floor surfaces, ensuring smooth movement even over rough or debris-covered floors. Its high-performance design performs reliably across a wide temperature range from −20 °C to +80 °C. A precision ball journal bearing ensures controlled swivel action and effortless steering, enhancing manoeuvrability under load.
Key Features & Specifications
General
-
Castor Type: Heavy Duty Top Plate Swivel Castor
-
Bearing Type: Ball Journal
-
Maximum Load Capacity (per castor): 454 kg
-
Maximum Load Capacity (4 castors): 1362 kg
-
Colour: Orange
Wheel Details
-
Wheel Diameter: 152 mm
-
Tread Width: 50 mm
-
Wheel Material: Ergonomic Polyurethane (Donut Design)
-
Tread Hardness: 87 Shore A
-
Temperature Range: −20 °C to +80 °C
Mounting Details
-
Plate Length: 114 mm
-
Plate Width: 102 mm
-
Hole Centres: 92/75 mm × 75/67 mm
-
Plate Hole Diameter: 10 mm
Dimensions & Movement
-
Total Castor Height: 191 mm
-
Swivel Radius: 116 mm
Performance
-
Smooth, low-effort rolling with excellent shock absorption
-
Donut wheel for improved debris clearance and floor protection
-
Maintenance-free construction for low lifecycle cost
Typical Applications
-
Heavy-duty industrial trolleys and carts
-
Machinery and equipment transport
-
Warehouse and factory handling
-
Logistics and production line applications
Why Choose Ross Handling
Ross Handling supplies engineered castor solutions built for durability, performance and long service life. This maintenance-free heavy duty castor with ergonomic polyurethane donut wheel combines high load capacity with smooth, controlled movement — making it a dependable choice for demanding industrial material handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
454 |
|
|
50 |
|
|
-20 min to +80 max |
|
|
87A |
|
|
1362 |
|
|
114 |
|
|
102 |
|
|
92/75 |
|
|
75/67 |
|
|
10 |
|
|
116 |
|
|
191 |
|
|
Orange |
|
|
152 |
|
|
Ergonomic Polyurethane |
