Ergonomic Donut Fixed Castor
SKU
CCAPEX-4R
This 4″ (approximately 102 mm) ergonomic donut fixed castor is designed for smooth, dependable... Read Full Description
In stock
£57.25
£47.71
- Price
- 1 + £57.25 £47.71
CAD Request
Frequently bought together
Alternative Products
Description

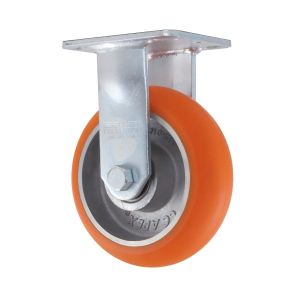

This 4″ (approximately 102 mm) ergonomic donut fixed castor is designed for smooth, dependable straight-line movement under heavy loads in industrial and commercial environments. With a load capacity of up to 317 kg per castor, it’s ideal for heavy trolleys, equipment carts and mobile platforms that require strong support and stable performance.
The ergonomic polyurethane donut wheel delivers excellent shock absorption, low rolling resistance and superior protection for floor surfaces. Its performance remains reliable across a wide temperature range from –20 °C to +80 °C, making it suitable for use in a variety of work environments. Built with a ball journal bearing, this castor ensures smooth rolling action under load with minimal effort.
Key Features & Specifications
General
-
Castor Type: Fixed Top Plate Castor
-
Bearing Type: Ball Journal
-
Maximum Load Capacity (per castor): 317 kg
-
Maximum Load Capacity (4 castors): 951 kg
-
Colour: Orange
Wheel Details
-
Wheel Diameter: 4″ (102 mm)
-
Tread Width: 50 mm
-
Wheel Material: Ergonomic Polyurethane (Donut)
-
Tread Hardness: 87 Shore A
-
Temperature Range: –20 °C to +80 °C
Mounting & Dimensions
-
Plate Length: 114 mm
-
Plate Width: 102 mm
-
Hole Centres: 92/75 mm × 75/67 mm
-
Plate Hole Diameter: 10 mm
-
Total Castor Height: 143 mm
Performance
-
Smooth, low-resistance rolling with good shock absorption
-
Donut wheel design for floor protection and debris clearance
-
Stable, fixed movement for heavy loads
Typical Applications
-
Industrial trolleys and carts
-
Equipment transport and handling
-
Warehouse and factory floor movement
-
Material handling systems
Why Choose Ross Handling
Ross Handling supplies engineered castor solutions built for durability, performance and ease of use. This 4″ ergonomic donut fixed castor with a polyurethane wheel and ball bearing offers smooth, stable movement and excellent load support — making it a dependable choice for heavy-duty industrial and commercial handling tasks.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
317 |
|
|
50 |
|
|
-20 min to +80 max |
|
|
87A |
|
|
951 |
|
|
114 |
|
|
102 |
|
|
92/75 |
|
|
75/67 |
|
|
10 |
|
|
143 |
|
|
Orange |
|
|
4" |
|
|
Ergonomic Polyurethane |
