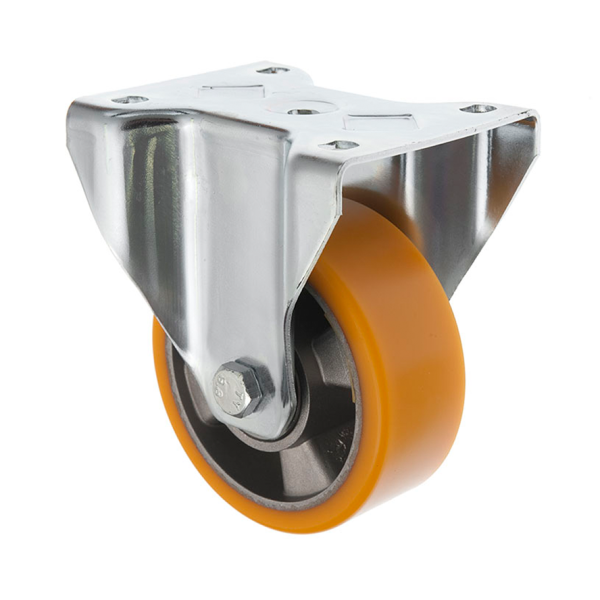

160mm Heavy Duty Fixed Castors Polyurethane Aluminium Wheel 700kg
SKU
160-5050-PAL
This 160 mm heavy-duty fixed fabricated castor with a polyurethane on aluminium wheel is built... Read Full Description
In stock
£47.86
£39.88
CAD Request
Frequently bought together
Alternative Products
Description
This 160 mm heavy-duty fixed fabricated castor with a polyurethane on aluminium wheel is built for straight-line movement in tough industrial applications where high load support, floor protection and robust wheel performance are required. The fixed orientation ensures consistent tracking and stability on heavy equipment that travels along a defined path or remains directional during use.
With a load capacity of 700 kg per castor, this model is ideal for industrial trolleys, machinery bases, fabrication tables, material-handling platforms and workshop carts operating under substantial loads. The ball journal bearing delivers smooth, dependable rolling performance under load, contributing to long-term reliability in demanding environments.
The polyurethane on aluminium wheel combines a lightweight aluminium core with a tough polyurethane tread, offering excellent load support, vibration reduction and floor protection. The 50 mm tread width and A92 Shore hardness provide a resilient running surface that balances durability, grip and quiet operation. Designed for use within a temperature range of –20 °C to +60 °C, this castor performs reliably across a wide range of indoor industrial settings.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres and 10 mm hole diameter ensures secure mounting and efficient load distribution for heavy-duty use.
Key Features
-
Heavy-duty fixed fabricated castor – Stable straight-line movement
-
700 kg load capacity per castor – Designed for high-demand industrial use
-
Polyurethane on aluminium wheel – Durable, floor-friendly tread
-
160 mm wheel diameter – Smooth rolling under heavy loads
-
50 mm tread width – Improved stability and wheel contact
-
Ball journal bearing – Smooth and reliable rotation
-
Large top plate fixing – Secure mounting for heavy equipment
-
Operating temperature range –20 °C to +60 °C
Specifications
-
Castor Type: Fixed, Top Plate
-
Load Capacity: 700 kg per castor
-
Max Load Capacity of 4 Castors: 2100 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 50 mm
-
Wheel Material: Polyurethane on Aluminium
-
Wheel Colour: Yellow
-
Tread Hardness: A92 Shore
-
Bearing Type: Ball Journal
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 200 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Machinery bases and fabrication tables
-
Material handling systems and workshop carts
-
Assembly and production equipment
-
Applications needing fixed directional mobility and robust load support
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors engineered for strength, durability and dependable performance in industrial environments. Products are chosen to meet the practical demands of commercial, manufacturing and logistics users.
This 160 mm heavy-duty fixed fabricated castor with polyurethane on aluminium wheel offers excellent load capacity, smooth rolling and robust construction, making it a dependable choice for demanding material-handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
700 |
|
|
160-5050-PAL_1.pdf |
|
|
50 |
|
|
-20 min to + 60 max |
|
|
A92 |
|
|
2100 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
200 |
|
|
Yellow |
|
|
160 |
|
|
Polyurethane on Aluminium |
