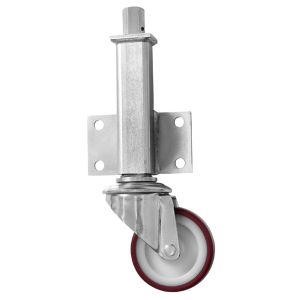

JA 125mm Medium Duty Jacking Castor Polyurethane Wheel 150kg Load

SKU
JA4-125-PNB
This medium duty jacking castor with a 125mm polyurethane wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery that... Read More
In stock
£139.48 £116.23
  • Price
  • 1 + £139.48 £116.23
  • 7 + £125.90 £104.92
  • 12 + £116.21 £96.84
Qty
  • Discount Bulk Enquiry
CAD Request

To receive a CAD drawing of this product please enter your details below:


Frequently bought together

  1. Medium Duty Jacking Castor Polyurethane Wheel 150kg Load
  2. +
  3. Medium Duty Jacking Castor Polyurethane Wheel 150kg Load
  4. +
  5. JA4-125-PNB/SWB
  6. +
  7. JA4-125-PNB/SWB
  8. +
  9. M10 x 40 Bolt and M10 Nyloc Nut 16 Pack
Total price: £0.00

Description
This medium duty jacking castor with a 125mm polyurethane wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery that require vertical movement as well as horizontal. The jacking operation is achieved by a hexagonal spanner at the top of the jacking unit.
Technical Details
More Information
Jacking Castors Castor Type Jacking Castors
Roller Bearing Type Roller
150 Load Capacity (kg) 150
Jacking Castors Product Type Jacking Castors
JA4-125-PNB-compressed.pdf Technical PDF JA4-125-PNB-compressed.pdf
30 Tread Width (mm) 30
10 Bolt Hole Size (mm) 10
178 Total Height to Plate Lower Bolt Hole 178
187 Jacking Unit Height From Plate Lower Bolt Hole 187
441 Jacking Unit Height When Extended (76mm) 441
300 Max Load Capacity for 2 Jacking Castors 300
130 Plate Length (mm) 130
75 Plate Width (mm) 75
102 Plate Hole Centres Length (mm) 102
51 Plate Hole Centres Width (mm) 51
11 Plate Hole Diameter 11
24mm Spanner Operating Method 24mm Spanner
120 Swivel Radius 120
365 Total Castor Height 365
Maroon Wheel Colour Maroon
Polyurethane Wheel Material Polyurethane
White Polyamide Wheel Centre White Polyamide
125 Wheel Diameter(mm) 125
