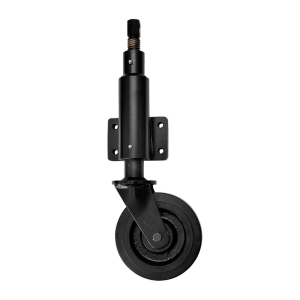

150mm Heavy Duty Jacking Castor Swivel Rubber Wheel 76mm Lift

SKU
JA6-150-RTB
This Extra Heavy Duty Jacking Castor with a 150mm heavy duty rubber wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and... Read More
In stock
£490.24 £408.53
  • Price
  • 1 + £490.24 £408.53
  • 7 + £428.18 £356.82
£490.24 £408.53
Qty
  • Discount Bulk Enquiry
CAD Request

To receive a CAD drawing of this product please enter your details below:


Frequently bought together

  1. 160mm Heavy Duty Jacking Castor Swivel Rubber Wheel 76mm Lift
  2. +
  3. M12 x 40 Threaded Bolts and Nyloc Nuts - 4 Pack
  • This item: 150mm Heavy Duty Jacking Castor Swivel Rubber Wheel 76mm Lift £490.24
Total price: £0.00

Description
This Extra Heavy Duty Jacking Castor with a 150mm heavy duty rubber wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery that require vertical movement as well as horizontal. The jacking operation is achieved by a hexagonal spanner at the top of the jacking unit. JA6RTB
Technical Details
More Information
Jacking Castors Castor Type Jacking Castors
Ball Journal Bearing Type Ball Journal
300 Load Capacity 300
Jacking Castors Product Type Jacking Castors
JA6-150-RTB-compressed.pdf Technical PDF JA6-150-RTB-compressed.pdf
60 Tread Width (mm) 60
12 Bolt Hole Size 12
600 Max Load Capacity for 2 Jacking Castors 600
225 Total Height to Plate Lower Bolt Hole 225
240 Jacking Unit Height From Plate Lower Bolt Hole 240
580 Jacking Unit Height When Extended (76mm) 580
152 Plate Length (mm) 152
106 Plate Width (mm) 106
114 Plate Hole Centres Length (mm) 114
64 Plate Hole Centres Width (mm) 64
13 Plate Hole Diameter 13
Spanner Operating Method Spanner
135 Swivel Radius 135
465 Total Castor Height 465
Black Wheel Colour Black
Rubber Wheel Material Rubber
Cast Iron Wheel Centre Cast Iron
150 Wheel Diameter (mm) 150
