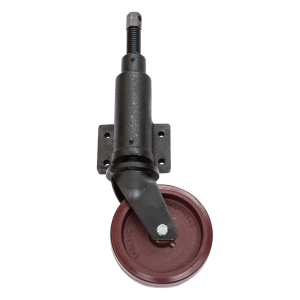

200mm Heavy Duty Jacking Castor with Polyurethane Wheel 1000kg Load

JA8-200-SUB

This Extra Heavy Duty Jacking Castor with a 200mm heavy duty polyurethane wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment p... Read More

In Stock
£311.63 (excl. VAT) Incl. VAT: £373.96
Price
1+ £311.63 (excl. VAT) £373.96 7 £304.56 (excl. VAT) £365.47

With this product, you earn 374 loyalty point(s). 374 points = £18.70.

Frequently bought together

Description

This Extra Heavy Duty Jacking Castor with a 200mm heavy duty polyurethane wheel can lift loads an additional 76mm in vertical height. With a side mounted attachment plate jacking castors can be used on a variety of equipment and machinery that require vertical movement as well as horizontal. The jacking operation is achieved by a hexagonal spanner at the top of the jacking unit. JA8SUB

Technical Details

Bearing Type Bearing Type Roller
Bolt Hole Size (mm) Bolt Hole Size (mm) 12
Colour Colour No
Jacking Unit Extension Height Max 76m 620
Jacking Unit Height From Plate Lower Bolt Hole 240
Load Capacity (kg) Load Capacity (kg) 1000
Max Load Capacity for 2 Jacking Castors 1000
Min Jacking Unit Extension Height 505
Operating Method Spanner
Plate Dimension Length (mm) Plate Dimension Length (mm) 152
Plate Dimension Width (mm) Plate Dimension Width (mm) 106
Plate Hole Centres Length (mm) Plate Hole Centres Length (mm) 114
Plate Hole Centres Width (mm) Plate Hole Centres Width (mm) 64
Plate Hole Diameter Plate Hole Diameter 13
Product Type Product Type Jacking Castors
Swivel Radius Swivel Radius 165
Technical PDF Technical PDF JA8-200-SUB_1.pdf
Thread Material Thread Material No
Total Castor Height Total Castor Height 226.5+ 76
Total Height to Plate Lower Bolt Hole 265
Tread Width (mm) Tread Width (mm) 50
Wheel Centre Wheel Centre Cast Iron
Wheel Colour Wheel Colour Yellow
Wheel Diameter(mm) Wheel Diameter(mm) 200
Wheel Material Wheel Material Polyurethane

Delivery & Returns



Delivery Charges



We have teamed up with FedEx and DPD Interlink to deliver our products nationally and worldwide. Our trackable consignments, and signed for service ensures the order gets to you in the required time, hassle free.

As our products can be bulky we have a variety of delivery charges based upon the weight of your overall order. You will be shown delivery options at the checkout. For a more detailed view of our delivery charges please visit our Delivery and Returns page

You can order online quickly and easily for both UK and EU destination, and your delivery charge will be shown to you at checkout. If your order exceeds our weight for online orders you will be asked to contact us directly to get a pallet delivery quote.



ServiceWeight - (kg's)Cost £'s

Collection In Person

-

Free

Sack Trucks Trolleys and Steps

-

Free

2 Day - Express Pack Light

Up to 1kg

£4.50

2 Day Express Pack Medium

Up to 4kg

£6.00

Next Working Day Service

Up to 25kg

£9.50

2 Day - Standard Service

4kg to 25kg

£7.95

Next Day - Pre 12pm

Up to 25kg

£15.00

Next Day - Pre 10.30am

Up to 25kg

£20.00

Saturday - Delivery  Service

Up to 25kg

£15.00

Highlands and Islands

Up to 25kg

From £13.00 - £40.00

Northern & Southern Ireland

Up to 50kg

£13.00 - £39.00

Inside EU

Up to 60kg

From €14 - €68

Outside EU

Up to 60kg

Contact us for a Quote





Returns and Refunds

We have a no quibble returns and refund policy. You have 7 days to return any item for a full refund or exchange, provided it is in its original, unused, saleable condition and repackaged in original packaging.

To return goods simply download this Returns form

Returns charges are not covered by the Company, unless the goods are faulty. If the goods are faulty please call our Customer Services on 0116 2764987 or 00 44 116 2764987

For Returns of Sack Trucks, Trolleys and Mobile Steps please refer to our detailed Terms and Conditions

FAQs

Got a Question to Ask?

Use this form to submit your question. Question will be displayed after moderation

Question Written by: BJLEE . March 13th 2018
Are 4X JA6-200-SUB used for 2 ~2.5ton weight? I'm looking for suitable jacking castors.
Answer Written by: Ross Handling
Thank you for the enquiry. Due to the high probability of an uneven load distribution when using jacking castors we offer the following advise; When mounting x4 jacking castors to an application we calculate the safe working load by taking the carrying capacity of a single jacking castor and multiplying it by 2. For example a JA6-200-SUB has a carrying capacity of 1000kg per castor, so we would advise no more than 2000kg per application. We do have other options available that can carry higher loads of up to 2500kg such as the JA210-SUTML as well as other bespoke options that can be supplied.
If you wanted to give me a call on 0116 2764987 or send an e-mail to tim@rosshandling.co.uk i will be happy to take a closer look at your requirement and see what we can offer.
