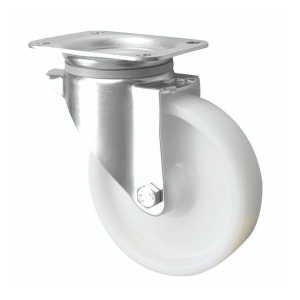

160mm Swivel Castors with Nylon Wheel and Directional Lock
SKU
160-3360-NY/D
This 160 mm swivel castor with directional lock and Read Full Description
In stock
£46.45
£38.71
- Price
- 1 + £46.45 £38.71
CAD Request
Frequently bought together
Alternative Products
Description
This 160 mm swivel castor with directional lock and white nylon wheel is designed for medium- to heavy-duty handling applications where easy manoeuvrability and controlled straight-line travel are both required. The directional lock mechanism allows the swivel head to be locked for straight tracking, then released for full swivel movement when positioning loads.
With a load capacity of 350 kg per castor, this model is ideal for industrial trolleys, mobile machinery and heavy equipment. The plain bore wheel construction provides a robust, low-maintenance solution for demanding environments where reliability is essential.
The white nylon wheel features a hard, wear-resistant tread that delivers excellent load support and low rolling resistance on smooth surfaces. With a tread hardness of D75 and an operating temperature range of –40°C to +80°C, this castor performs reliably in environments exposed to temperature variation, moisture or wash-down conditions. The 160 mm wheel diameter improves rolling performance over uneven floors, while the 200 mm overall height provides strong support without compromising stability. A secure top plate fixing ensures a straightforward and dependable installation.
Key Features
-
Swivel castor with directional lock – Manoeuvrability with straight-line control
-
Plain bore wheel – Simple, robust and low-maintenance
-
Top plate fixing – Strong and secure mounting
-
160 mm wheel diameter – Excellent rolling performance
-
350 kg load capacity per castor – Suitable for medium- to heavy-duty use
-
White nylon wheel – Hard-wearing and high load rated
-
High tread hardness (D75) – Excellent wear resistance
-
Wide temperature range: –40°C to +80°C
Specifications
-
Castor Type: Swivel with Directional Lock, Top Plate
-
Bearing Type: Plain
-
Load Capacity: 350 kg per castor
-
Max Load Capacity of 4 Castors: 1050 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 40 mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Tread Hardness: D75
-
Temperature Range: –40°C to +80°C
-
Total Castor Height: 200 mm
-
Swivel Radius: 135 mm
-
Plate Length: 137 mm
-
Plate Width: 105 mm
-
Plate Hole Centres: 105 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Industrial trolleys and mobile machinery
-
Manufacturing and warehouse handling units
-
Commercial and industrial environments
-
Applications needing controlled straight-line travel
-
Load-intensive manoeuvring tasks
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels known for strength, durability and reliable performance. Products are chosen to meet the practical demands of commercial and industrial users.
This 160 mm swivel castor with directional lock and white nylon wheel delivers controlled movement, high load capacity and excellent wear resistance, making it a dependable solution for demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Plain |
|
|
350 |
|
|
160-3360-NY-D.pdf |
|
|
40 |
|
|
-40 min to +80 max |
|
|
D75 |
|
|
1050 |
|
|
137 |
|
|
105 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
135 |
|
|
200 |
|
|
White |
|
|
160 |
|
|
Nylon |
