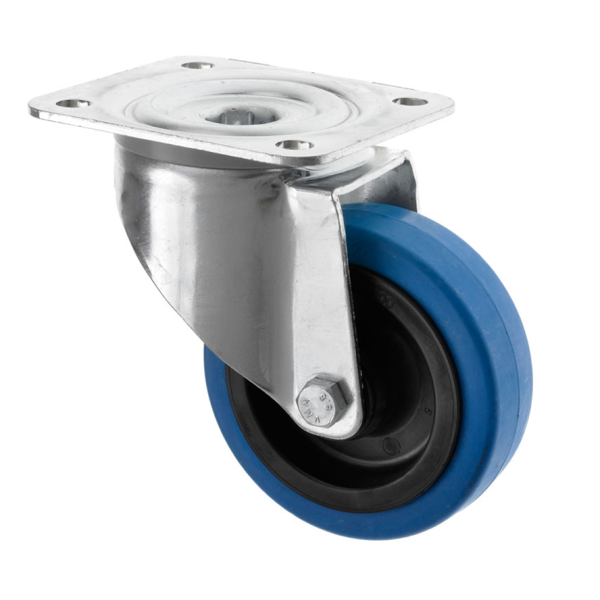

160mm Industrial Castors with Blue Rubber Wheel
SKU
160-3360-RNB
This 160 mm swivel castor with blue rubber wheel is designed for heavy-duty applications requiring smooth manoeuvrability, high load capacity and... Read Full Description
In Stock
£28.90
£24.08
- Price
- 1 + £28.90 £24.08
CAD Request
Frequently bought together
Alternative Products
Description
This 160 mm swivel castor with blue rubber wheel is designed for heavy-duty applications requiring smooth manoeuvrability, high load capacity and reliable rolling performance. The swivel head allows easy directional changes, making it ideal for large trolleys, mobile equipment and industrial units that need controlled movement without braking.
With a load capacity of 300 kg per castor, this model is well suited to demanding industrial and commercial environments. The roller bearing ensures smooth, consistent rolling under heavy loads while reducing rolling resistance and wear during continuous use.
The rubber on polypropylene wheel provides excellent shock absorption, quiet operation and good floor protection. With a tread hardness of A70 and an operating temperature range of –20°C to +80°C, this castor performs reliably across a wide range of indoor and light industrial conditions. The large 160 mm wheel diameter improves obstacle clearance and rolling efficiency, while the 200 mm total castor height offers increased clearance without compromising stability. A strong top plate fixing ensures secure and straightforward installation.
Key Features
-
Swivel castor – Smooth manoeuvrability and easy directional control
-
Top plate fixing – Secure and stable mounting
-
160 mm wheel diameter – Improved rolling efficiency and obstacle clearance
-
300 kg load capacity per castor – Suitable for heavy-duty use
-
Blue rubber wheel – Quiet running and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under high loads
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Swivel, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 300 kg per castor
-
Max Load Capacity of 4 Castors: 900 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 40 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Blue
-
Tread Hardness: A70
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 200 mm
-
Swivel Radius: 135 mm
-
Plate Length: 137 mm
-
Plate Width: 105 mm
-
Plate Hole Centres: 105 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Mobile machinery and plant equipment
-
Large workstations and assembly benches
-
Material handling units
-
Warehousing and production environments
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels designed for strength, durability and long-term reliability. Products are sourced from trusted manufacturers to meet the demands of industrial and commercial applications.
This 160 mm swivel castor with blue rubber wheel provides excellent load capacity, smooth rolling performance and dependable manoeuvrability, making it a robust solution for heavy-duty mobile equipment.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
300 |
|
|
TSZ7 NER 160/45 P3 5017 |
|
|
160-3360-RNB_1.pdf |
|
|
40 |
|
|
-20 min to +80 max |
|
|
A70 |
|
|
900 |
|
|
137 |
|
|
105 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
135 |
|
|
200 |
|
|
Blue |
|
|
160 |
|
|
Rubber on Polypropylene |
