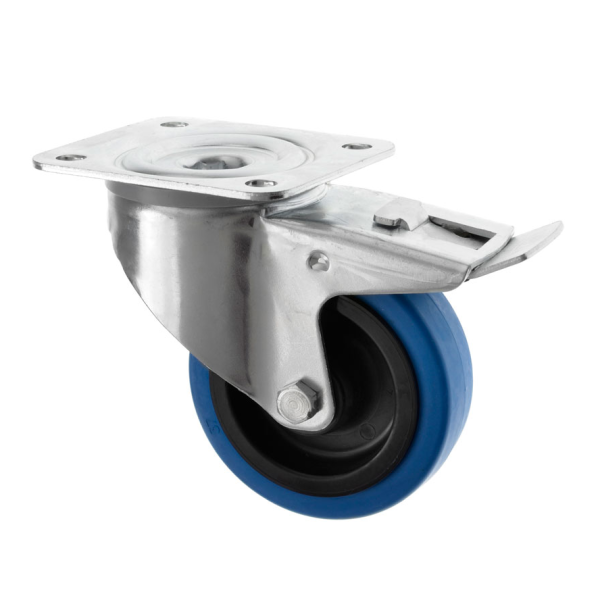

160mm Blue Elastic Rubber Castors with Brake 300kg
SKU
160-3360-RNB/SWB
This 160 mm swivel braked castor with blue rubber wheel is designed for heavy-duty applications where high load capacity, smooth manoeuvrability... Read Full Description
In Stock
£33.30
£27.75
- Price
- 1 + £33.30 £27.75
CAD Request
Frequently bought together
Alternative Products
Description
This 160 mm swivel braked castor with blue rubber wheel is designed for heavy-duty applications where high load capacity, smooth manoeuvrability and secure braking are essential. The swivel head allows precise directional control, while the integrated brake provides positive locking to keep equipment firmly in place when stationary.
With a load capacity of 300 kg per castor, this model is ideal for heavy industrial trolleys, mobile machinery, production equipment and material handling systems. The roller bearing construction ensures smooth rolling under high loads and long service life in demanding working environments.
The rubber on polypropylene wheel offers excellent shock absorption, vibration reduction and floor protection. With a tread hardness of A70 and a temperature operating range from –20°C to +80°C, this castor performs reliably in a wide variety of indoor and light industrial conditions. The large 160 mm wheel diameter improves rolling efficiency and obstacle clearance, while the 200 mm total castor height provides substantial ground clearance without compromising stability. A robust top plate fixing ensures strong, secure installation.
Key Features
-
Swivel castor with brake – Controlled manoeuvrability with secure locking
-
Top plate fixing – Strong, stable mounting for heavy loads
-
160 mm wheel diameter – Excellent rolling performance and obstacle clearance
-
300 kg load capacity per castor – Suitable for heavy-duty applications
-
Blue rubber wheel – Vibration damping, quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under high loads
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 300 kg per castor
-
Max Load Capacity of 4 Castors: 900 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 40 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Blue
-
Tread Hardness: A70
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 200 mm
-
Swivel Radius: 167 mm
-
Plate Length: 137 mm
-
Plate Width: 105 mm
-
Plate Hole Centres: 105 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy industrial and warehouse trolleys
-
Mobile machinery and production equipment
-
Assembly lines and workstations
-
Material handling systems
-
Indoor and light industrial environments requiring secure braking
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, reliability and long-term performance. Products are sourced from trusted manufacturers to meet the demands of industrial and commercial environments.
This 160 mm swivel braked castor with blue rubber wheel delivers high load capacity, smooth rolling and dependable braking, making it a reliable solution for heavy-duty industrial applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
300 |
|
|
TSZ7 NER 160/45 P3 BP 5017 |
|
|
160-3360-RNB-SWB_1.pdf |
|
|
40 |
|
|
-20 min to +80 max |
|
|
A70 |
|
|
900 |
|
|
137 |
|
|
105 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
167 |
|
|
200 |
|
|
Blue |
|
|
160 |
|
|
Rubber on Polypropylene |
