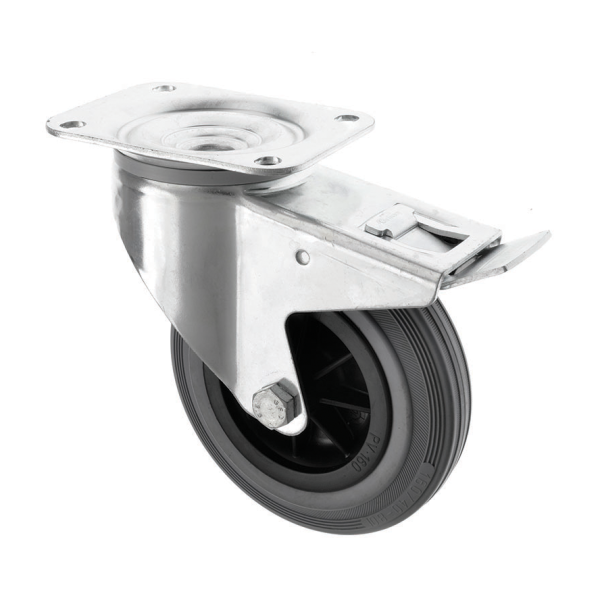

160mm Swivel Braked Castor Grey Rubber Wheel
SKU
160-3360-GVR/SWB
This 160 mm swivel braked castor with grey rubber wheel is designed for applications requiring smooth manoeuvrability combined with secure... Read Full Description
In stock
£35.59
£29.66
- Price
- 1 + £35.59 £29.66
CAD Request
Frequently bought together
Alternative Products
Description
This 160 mm swivel braked castor with grey rubber wheel is designed for applications requiring smooth manoeuvrability combined with secure braking under load. The swivel head allows easy directional changes, while the foot-operated brake locks the castor when stationary, helping to keep equipment safely in position.
With a load capacity of 150 kg per castor, this model is suitable for medium-duty industrial and commercial applications. The roller bearing construction ensures smooth rolling performance under load while reducing rolling resistance and wear during continuous use.
The rubber on polypropylene wheel provides effective shock absorption, quiet operation and reliable floor protection. With a tread hardness of A80 and an operating temperature range of –20°C to +80°C, this castor performs consistently across a wide range of indoor and light industrial environments. The larger 160 mm wheel diameter improves rolling efficiency and obstacle clearance, while the 200 mm total castor height offers increased ground clearance without compromising stability. A robust top plate fixing ensures secure and dependable installation.
Key Features
-
Swivel castor with brake – Smooth movement with secure locking
-
Top plate fixing – Strong and stable mounting
-
160 mm wheel diameter – Improved rolling efficiency and obstacle clearance
-
150 kg load capacity per castor – Suitable for medium-duty use
-
Grey rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 150 kg per castor
-
Max Load Capacity of 4 Castors: 450 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 25 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Tread Hardness: A80
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 200 mm
-
Swivel Radius: 167 mm
-
Plate Length: 137 mm
-
Plate Width: 105 mm
-
Plate Hole Centres: 105 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Industrial and workshop trolleys
-
Mobile workstations and equipment
-
Handling carts and storage units
-
Medium-duty material handling
-
Indoor environments requiring controlled movement and braking
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial applications.
This 160 mm swivel braked castor with grey rubber wheel delivers smooth rolling, reliable braking and robust construction, making it a dependable solution for controlled mobility in industrial environments.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
150 |
|
|
160-3360-GVR-SWB_1.pdf |
|
|
25 |
|
|
-20 min to +80 max |
|
|
A80 |
|
|
450 |
|
|
137 |
|
|
105 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
167 |
|
|
200 |
|
|
Grey |
|
|
160 |
|
|
Rubber on Polypropylene |
