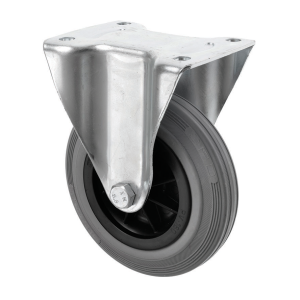

160mm Grey Rubber Wheel Fixed Castor
SKU
160-3368-GVR
This 160 mm fixed castor with grey rubber wheel is designed for stable, straight-line movement in demanding applications requiring dependable... Read Full Description
In stock
£20.87
£17.39
- Price
- 1 + £20.87 £17.39
CAD Request
Frequently bought together
Alternative Products
Description
This 160 mm fixed castor with grey rubber wheel is designed for stable, straight-line movement in demanding applications requiring dependable load support and smooth rolling performance. The fixed housing ensures equipment tracks in a single direction, making it ideal for industrial trolleys, mobile workstations, handling units and material handling platforms where controlled linear movement is essential.
With a load capacity of 150 kg per castor, this model is well suited to medium-duty industrial and commercial environments. The roller bearing construction ensures smooth rolling under load, reducing friction and wear during continuous use. With a maximum combined load capacity of 450 kg across four castors, it provides reliable support for heavier equipment and platforms.
The rubber on polypropylene wheel offers effective shock absorption, quiet operation and good floor protection. Featuring a tread hardness of A80 and an operating temperature range of –20°C to +80°C, this castor performs consistently across a wide variety of indoor and light industrial conditions. The 160 mm wheel diameter improves rolling efficiency and obstacle clearance, while the 200 mm total castor height provides substantial ground clearance without compromising stability. A sturdy top plate fixing ensures secure and straightforward installation.
Key Features
-
Fixed castor – Stable, straight-line movement
-
Top plate fixing – Secure and robust mounting
-
160 mm wheel diameter – Excellent rolling efficiency and obstacle clearance
-
150 kg load capacity per castor – Suitable for medium-duty use
-
Grey rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 150 kg per castor
-
Max Load Capacity of 4 Castors: 450 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 25 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Tread Hardness: A80
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 200 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Industrial and workshop trolleys
-
Mobile workstations and equipment
-
Handling carts and storage units
-
Material handling platforms
-
Warehousing and production environments requiring straight-line movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial applications.
This 160 mm fixed castor with grey rubber wheel delivers smooth rolling performance, stable directional movement and reliable load support, making it a practical solution for medium-duty industrial use.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
150 |
|
|
160-3368-GVR_1.pdf |
|
|
25 |
|
|
-20 min to +80 max |
|
|
A80 |
|
|
450 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
200 |
|
|
Grey |
|
|
160 |
|
|
Rubber on Polypropylene |
