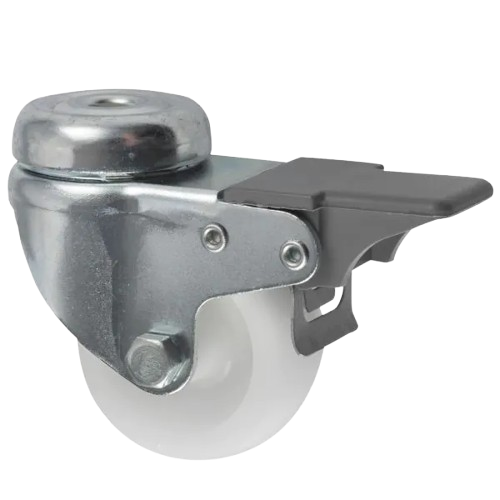

75mm Bolt hole Nylon Castor with Brake
SKU
75-310-NY/SWB
This 75 mm swivel bolt hole braked castor with white nylon wheel is designed for light- to medium-duty applications where smooth manoeuvrability,... Read Full Description
In Stock
£9.18
£7.65
- Price
- 1 + £9.18 £7.65
- 20 + £8.35 £6.96
- 50 + £7.55 £6.29
- 100 + £6.96 £5.80
CAD Request
Frequently bought together
Alternative Products
Description
This 75 mm swivel bolt hole braked castor with white nylon wheel is designed for light- to medium-duty applications where smooth manoeuvrability, durability and secure locking are required. The swivel action allows easy directional changes, while the integrated brake provides positive locking to hold equipment firmly in place when stationary.
With a dynamic load capacity of 70 kg per castor, this model is well suited to mobile furniture, light trolleys, storage units and equipment housings. The plain bearing construction ensures dependable swivel performance with minimal maintenance, making it a practical and cost-effective solution for everyday indoor use.
The solid nylon wheel offers excellent wear resistance and low rolling resistance, making it ideal for smooth, hard floor surfaces. The 75 mm wheel diameter improves rolling performance and obstacle clearance, while the 100 mm total castor height provides additional clearance without compromising stability. The 10 mm (M10) bolt hole fixing allows secure central mounting for quick and straightforward installation.
Key Features
-
Swivel castor with brake – Manoeuvrability with secure locking
-
Bolt hole fixing (M10) – Simple, secure central mounting
-
75 mm wheel diameter – Improved rolling performance and clearance
-
70 kg dynamic load capacity per castor – Suitable for light to medium duty use
-
White nylon wheel – Hard-wearing with low rolling resistance
-
Plain bearing – Simple, low-maintenance design
-
Stable overall height – Suitable for a wide range of applications
Specifications
-
Castor Type: Swivel Braked, Bolt Hole
-
Bearing Type: Plain
-
Dynamic Load Capacity: 70 kg per castor
-
Max Load Capacity of 4 Castors: 210 kg
-
Wheel Diameter: 75 mm
-
Tread Width: 22 mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Total Castor Height: 100 mm
-
Swivel Radius: 92 mm
-
Bolt Hole Size: 10 mm (M10)
Applications
Commonly used for:
-
Mobile furniture and cabinets
-
Light-duty trolleys and carts
-
Storage units
-
Equipment housings
-
Indoor applications on smooth, hard floors requiring secure braking
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for durability, ease of installation and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial environments.
This 75 mm swivel bolt hole braked castor with white nylon wheel offers reliable manoeuvrability, long service life and secure locking, making it a dependable solution for light- to medium-duty indoor applications.
Technical Details
 |
Bolt Hole Castors |
|---|---|
|
|
Plain |
|
|
70 |
|
|
75-310-NY-SWB.pdf |
|
|
22 |
|
|
10 |
|
|
70 |
|
|
210 |
|
|
10 |
|
|
92 |
|
|
100 |
|
|
White |
|
|
75 |
|
|
Nylon |
